        Eye Lighting PE CELL AA-1068 | Photocell 101080 | JL-103B
        $32.67 $29.70 ex. GST
        Description

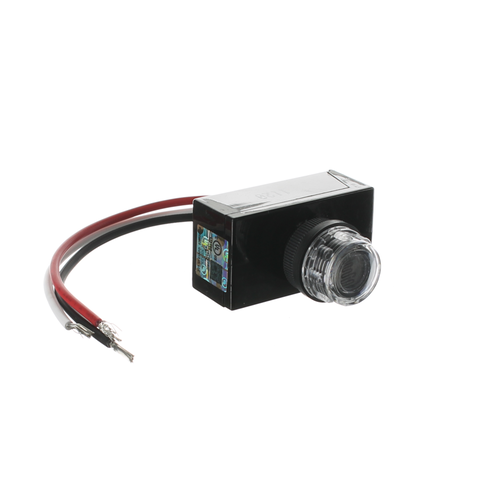

        Eye Lighting PE CELL AA-1068 | Photocell 101080 | JL-103B

        • The clear plastic lens is UV stabilised and ultrasonically sealed for water tightness
        • The polymer encapsulated CdS cell is protected from the elements by locking out air and moisture
        • The wire leads exit from the rear and the nipple ts through either the sheet metal side, die cast aluminium housing or plastic enclosure of a luminaire

        Features

        • Model # AA-1068
        • Manufacturer: Area Lighting Research Lighting
        • Photocell with a Maximum 1200 Watt Load Capacity
        • Voltage Range: 208-277V.
        • Lamp Load: 1200W
        • These Photo Cells, PE Cells have a proven record for high quality.
        • This photocell is very commonly found in my different types of lighting fixtures.
        • Easy to install - simply drill approx 16mm hole into the light fitting you want to control, use the nut to hold it in place and then have a qualified electrician wire it up.

        (AA1068)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Eye Lighting
        SKU AA1068
        Barcode # 9321814000439
        Shipping Weight 0.0510kg
        Shipping Width 0.070m
        Shipping Height 0.035m
        Shipping Length 0.055m
        Shipping Cubic 0.000135000m3
        TYPE VALUE
        Type Sensor
        Height (mm) 152
        Width (mm) 29
        Length (mm) 52
        Voltage (V) 185V - 305V
        Wattage (W) 1200
        Material Polycarbonate Housing UV Stabilised Acrylic Window
        Hole Width (mm) 19
        Operating Temperature -40°C to +65°C
        Operating Levels 'On' 16 Lux (+/-10%) 'Off' 65 Lux (+/-10%)
        Time Delay Relay Transfer >30 Seconds
