Name: Fluke 116/323 Test Kit Combo
Brand: Fluke
SKU: FLUKE116-323
Price: 715.00 AUD
Availability: OutOfStock

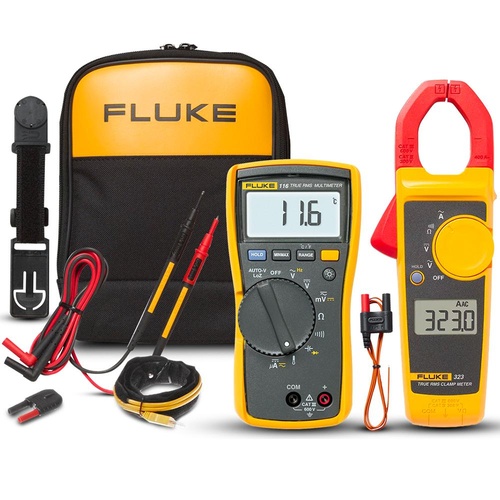

Fluke 116/323 Combo Kit

Fluke FLUKE-116/323 KIT 116/323 Multimeter and Clamp Meter HVAC Combo Kit

Having the right tool for the job is essential. Having all the right tools when you need them is even better. The Fluke 116/323 HVAC Combo Kit gives you the best in a versatile, rugged multimeter and a fast-acting, general purpose clamp meter. The Fluke 116 comes with the Fluke 80BK-A integrated DMM temperature probe; no need to carry a separate thermometer. The microamp function allows flame sensor measurement down to 0.1 microamps. The AutoV/LoZ function prevents false readings caused by ghost voltage. The Fluke 116 also has a large white LED backlight for work in poorly lit areas. It measures resistance, continuity, frequency, and capacitance and provides Min/Max/Average readings with elapsed time to record signal fluctuations. True RMS measurements and optimized ergonomics make the Fluke 323 True RMS Clamp Meter the best general purpose clamp meter for commercial and residential electricians. The Fluke 323 model is ideally suited for current measurements up to 400 A in tight cable compartments. Together, the Fluke 116 HVAC Multimeter and 323 True RMS Clamp Meter give electricians the right tools for the job.

Features:

Fluke 116 Digital Multimeter

Built-in thermometer for HVAC applications

Microamps to test flame sensors

Low input impedance: helps prevent false readings due to ghost voltage

Large white LED backlight to work in poorly lit areas

Resistance, continuity, frequency and capacitance

Min/Max/Average with elapsed time to record signal fluctuations

Compact ergonomic design for one-handed operation

Compatible with optional magnetic hanger (ToolPak™)

CAT III 600 V safety rated

Fluke 323 True-rms Clamp Meter

400 A AC current measurement

600 VAC and DC voltage measurement

True RMS AC voltage and current for accurate measurements on non-linear signals

Resistance measurement up to 40 kΩ with continuity detection

Slim, ergonomic design

CAT IV 300 V/CAT III 600 V safety rating

Fluke 116 HVAC Multimeter with Temperature and Microamps

Specifications:

Maximum voltage between any terminal and earth ground: 600 V

Surge protection: 6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2

Display: 6,000 counts, updates 4 per second

Bar graph: 33 segments, updates 32 per second

Operating temperature: -10°C to +50°C

Storage temperature: -40°C to +60°C

Battery type : 1 x 9 volt Alkaline, NEDA 1604A/ IEC 6LR61

Battery life: 400 hours typical, without backlight

DC millivolts Range/Resolution: 600.0 mV / 0.1 mV

DC millivolts Accuracy: ±([% of reading] + [counts]): 0.5% + 2

DC volts Range/Resolution:

6.000 V / 0.001 V

60.00 V / 0.01 V

600.00 V / 0.1 V

DC volts Accuracy: ±([% of reading] + [counts]): 0.5% + 2

Auto volts Range/Resolution: 600.0 V / 0.1 V

Auto volts Accuracy:

2.0% + 3 (DC, 45 Hz to 500 Hz)

4.0% + 3 (500 Hz to 1 kHz)

AC millivolts True RMS Range/Resolution: 600.0 mV / 0.1 mV

AC millivolts True RMS Accuracy:

1.0% + 3 (DC, 45 Hz to 500 Hz)

2.0% + 3 (500 Hz to 1 kHz)

AC volts True RMS Range/Resolution:

6.000 V / 0.001 V

60.00 V / 0.01 V

600.0 V / 0.1 V

AC volts True RMS Accuracy:

1.0% + 3 (DC, 45 Hz to 500 Hz)

2.0% + 3 (500 Hz to 1 kHz)

Continuity Range/Resolution: 600 Ω / 1 Ω

Continuity Accuracy: Beeper on < 20 Ω, off > 250 Ω; detects opens or shorts of 500 μs or longer.

Ohms Range/Resolution:

600.0 Ω / 0.1 Ω

6.000 kΩ / 0.001 kΩ

60.00 kΩ / 0.01 kΩ

600.0 kΩ / 0.1 kΩ

6.000 MΩ / 0.001 MΩ

Ohms Accuracy: 0.9% + 1

Ohms Range/Resolution: 40.00 MΩ / 0.01 MΩ

Ohms Accuracy: 1.5% + 2

Diode test Range/Resolution: 2.000 V / 0.001 V

Diede test Accuracy: 0.9% + 2

Capacitance Range/Resolution:

1000 nF / 1 nF

10.00 μF / 0.01 μF

100.0 μF / 0.1 μF

9999 μF / 1 μF

100 μF to 1000 μF

Capacitance Accuracy 1.9% + 2

Capacitance Range/Resolution > 1000 μF

Capacitance Accuracy 5% + 20%

LoZ capacitance Range: 1 nF to 500 μF

LoZ capacitance Accuracy: 10% + 2 typical

Temperature (Type-K thermocouple) Range/Resolution: -40°C to 400°C / 0.1°C

Temperature (Type-K thermocouple) Accuracy: 1% + 10²

Temperature (Type-K thermocouple) Range/Resolution: -40°F to 752°F / 0.2°F

Temperature (Type-K thermocouple) Accuracy: 1% + 18²

AC μamps True RMS (45 Hz to 500 Hz) Range/Resolution: 600.0 μA / 0.1 μA

AC μamps True RMS (45 Hz to 500 Hz) Accuracy: 1.0% + 2

DC μamps Range/Resolution: 600.0 μA / 0.1 μA

DC μamps Accuracy: 1.0% + 2

Hz (V or A input) Range/Resolution:

99.99 Hz / 0.01 Hz

999.99 Hz / 0.1 Hz

9.999 Hz / 0.001 Hz

50.00 Hz / 0.01 Hz

Hz (V or A input) Accuracy: 0.1% + 2

Dimensions (L x W x H): 46mm x 84mm x 167mm

Weight 0.550kg

Warranty:

Three Years Limited Warranty Covered By Fluke

Fluke 323 True-rms Clamp Meter

Specifications:

AC current Range: 400.0 A

AC current Accuracy:

2% ±5 digits (45 Hz to 65 Hz)

2.5% ±5 digits (65 Hz to 400 Hz)

AC voltage Range: 600.0 V

AC voltage Accuracy: 1.5% ±5 digits

DC voltage Range: 600.0 V

DC voltage Accuracy: 1.0% ±5 digits

Resistance Range/Resolution: 400.0 Ω/ 4000 Ω

Resistance Accuracy: 1.0% ±5 digits

Continuity: ≤ 70 Ω

AC response: True-rms

Data hold: Yes

Max wire diameter: 30 mm (600 MCM)

Category rating:

CAT III 600 V

CAT IV 300 V

Dimensions (L x W x H): 34mm x 75mm x 207mm

Weight 0.265kg

Warranty:

Two Years Limited Warranty Covered By Fluke

TYPE

VALUE

Type

Meter

Brand

Fluke

Brand	Fluke
SKU	FLUKE116-323
Barcode #	095969659208
Shipping Weight	1.4210kg
Shipping Width	0.230m
Shipping Height	0.090m
Shipping Length	0.310m
Shipping Cubic	0.006417000m3
