        Learn more by watching our Hager ACC910T | 10A 1P + N 10mA 6kA RCBO | C Curve video.

        Description

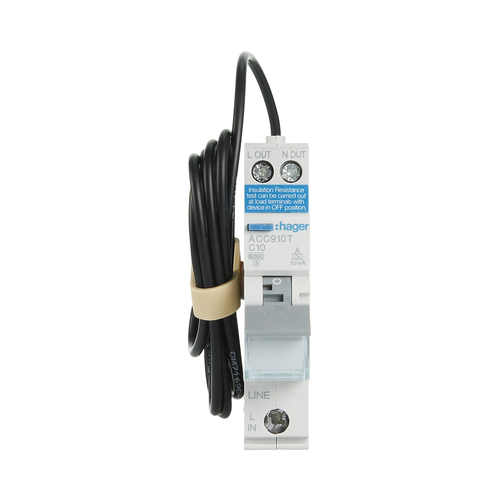

        Hager ACC910T | 10A 1P + N 10mA 6kA RCBO | C Curve

        The Hager ACC910T is a 10A 1P+N RCBO breaker designed to offer protection against overload, short circuits, and earth leakage. Rated at 10mA residual operating current and 6kA short circuit breaking capacity, this RCBO is ideal for use in residential and commercial applications. It is equipped with a C curve for moderate inrush current and is designed for installation on DIN rail type O.

        With a rated operational voltage of 230/240V, the ACC910T ensures reliable electrical protection. Its compact design allows for easy installation and supports flexible and rigid conductor connections. This RCBO detects residual current type A, providing effective protection against AC and pulsating DC currents.

        Hager ACC910T Features:

        • 10A RCBO with 1P+N Configuration: Provides overload, short circuit, and earth leakage protection.
        • 10mA Residual Current: Detects and interrupts leakage currents to prevent hazards.
        • Residual Current Type A: Provides protection against AC and pulsating DC residual currents.
        • 6kA Short Circuit Breaking Capacity: Ensures reliable protection in case of short circuits.
        • C Curve: Suitable for applications with moderate inrush currents.
        • DIN Rail Mounting: Easy to install on standard DIN rails.

        ACC910T FAQ:

        Q: What is the rated short circuit breaking capacity of this RCBO?
        A: The Hager ACC910T has a short circuit breaking capacity of 6kA.

        Q: What type of residual current does this breaker detect?
        A: It detects residual current type A, which includes AC and pulsating DC currents.

        Q: Can this RCBO be used in residential installations?
        A: Yes, it is suitable for both residential and commercial applications, providing reliable circuit protection.

        Q: What is the rated current of this RCBO?
        A: The RCBO is rated at 10A.

        (ACC910T)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        Features
        Specification Details
        Neutral position Right
        Number of protected poles 1
        Number of poles 2 P
        Type of pole 1P+N
        Fixing mode DIN rail type O (symmetrical)
        Curve C
        Number of modules 1
        Rated short circuit breaking capacity Icn AC according IEC60898-1 6 kA
        Rated operational voltage Ue 230 / 240 V
        Type of supply voltage AC
        Frequency 50 Hz
        Rated insulation voltage 440 V
        Max operating voltage 264 V
        Rated impulse withstand voltage 4 kV
        Rated residual operating current 10 mA
        Rated current 10 A
        Withstand not tripping on 8-20 μs wave 0.2 kA
        Breaking and opening capacity 4.5 kA
        Min/max threshold value of the AC thermal operation 1.13 / 1.45 In
        Magnetic regulating current 5 / 10 In
        Total power loss under IN 4.04 W
        Power loss per pole at In 2.13 W
        Electric endurance in number of cycles 10,000
        Number of mechanical operations 20,000
        Standards IEC 61009-1; AS/NZS 61009-1
        Protection index IP IP20
        Residual current type A
        REACH conform No
        Halogen free No
        Operating temperature -25…70 °C
        Degree of pollution according to IEC 60664 / IEC 60947-2 2
        Class of energy limitation I²t 3
        Altitude 2000 m
        Storage/transport temperature -25…80 °C
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU ACC910T
        Barcode # 3250611033264
        Package Weight 0.163kg
        Package Width 0.150m
        Package Height 0.076m
        Package Length 0.038m
        TYPE VALUE
        Type Circuit Protection
        Brand Hager Electrical
        Rated Current (A) 10 A
        Mounting Din Rail
        Voltage (V) 250
        Number of Poles 2 P
        Frequency 50 Hz
        Curve C
        Depth of installed product 70 mm
        Height of installed product 85 mm
        Width of installed product 17.7 mm
        Type of pole 1P+N
        Rated residual operating current 10 mA
