        Learn more by watching our HAGER ACC920T | 20 Amp 1P + N 10mA 6kA RCBO | C Curve | Type 1 video.

        Description

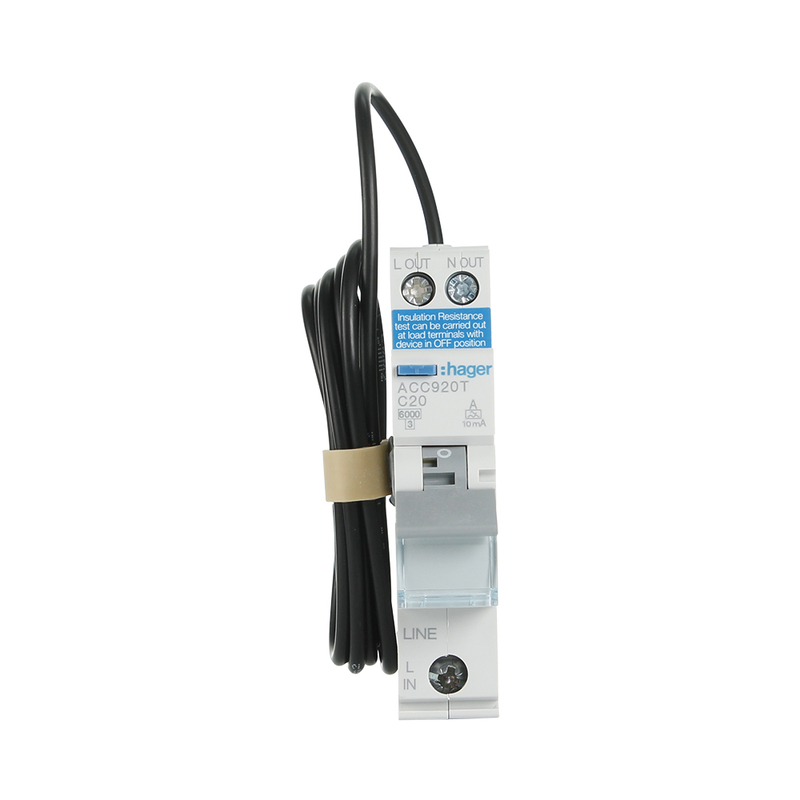

        HAGER ACC920T | 20 Amp 1P + N 10mA 6kA RCBO | C Curve | Type 1

        Description:

        The Hager ACC920T is a C Curve 1 Pole + Neutral RCBO that protects and controls power and lighting circuits. The ACC920T RCBO is rated at 6kA and is suitable for commercial and industrial applications.

        10mA Applications (Type I):
        Suitable for medical applications, socket outlets in homecare scenarios and patient care environments are required to be protected by Type I RCDs.

        Examples include:

        • Homecare applications (e.g. protecting the socket for home dialysis machines)
        • Socket outlets of patient areas (e.g. medical centres, pathologies, optometries etc.)

        Features:

        • Number of poles: 2P
        • Type of pole: 1P+N
        • Rated current: 20 A
        • Rated operational voltage Ue: 230 / 240 V
        • Frequency: 50 Hz
        • Rated residual operating current: 10 mA
        • RCBO C curve din rail mounted
        • Rated insulation voltage 440 V
        • Max operating voltage 264 V
        • Rated impulse withstand voltage 4 kV
        • Depth of installed product: 70 mm
        • Height of installed product: 85 mm
        • Width of installed product: 17.7 mm

        (ACC920T)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU ACC920T
        Barcode # 3250611033295
        Shipping Weight 0.1630kg
        Shipping Width 0.150m
        Shipping Height 0.076m
        Shipping Length 0.038m
        Shipping Cubic 0.000433200m3
        TYPE VALUE
        Type Circuit Protection
        Type 1
        Brand Hager Electrical
        Mounting Din Rail
        Voltage (V) 250
        Number of Poles 2 P
        Frequency 50 Hz
        Curve C
        Rated Current 20A
        Depth of installed product 70 mm
        Height of installed product 85 mm
        Width of installed product 17.7 mm
        Type of pole 1P+N
        Rated residual operating current 10 mA
