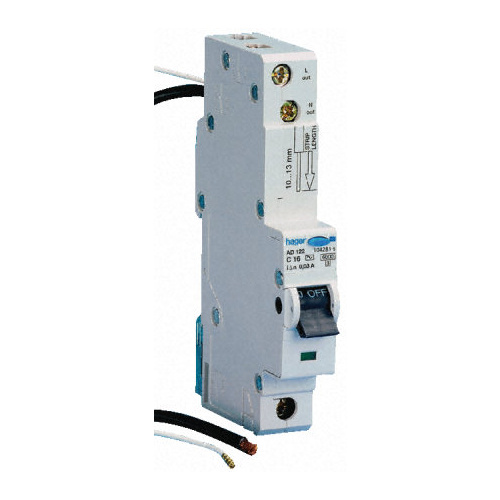

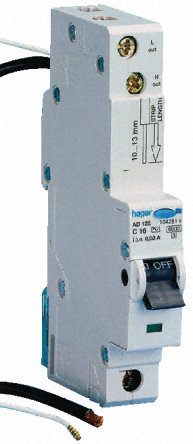

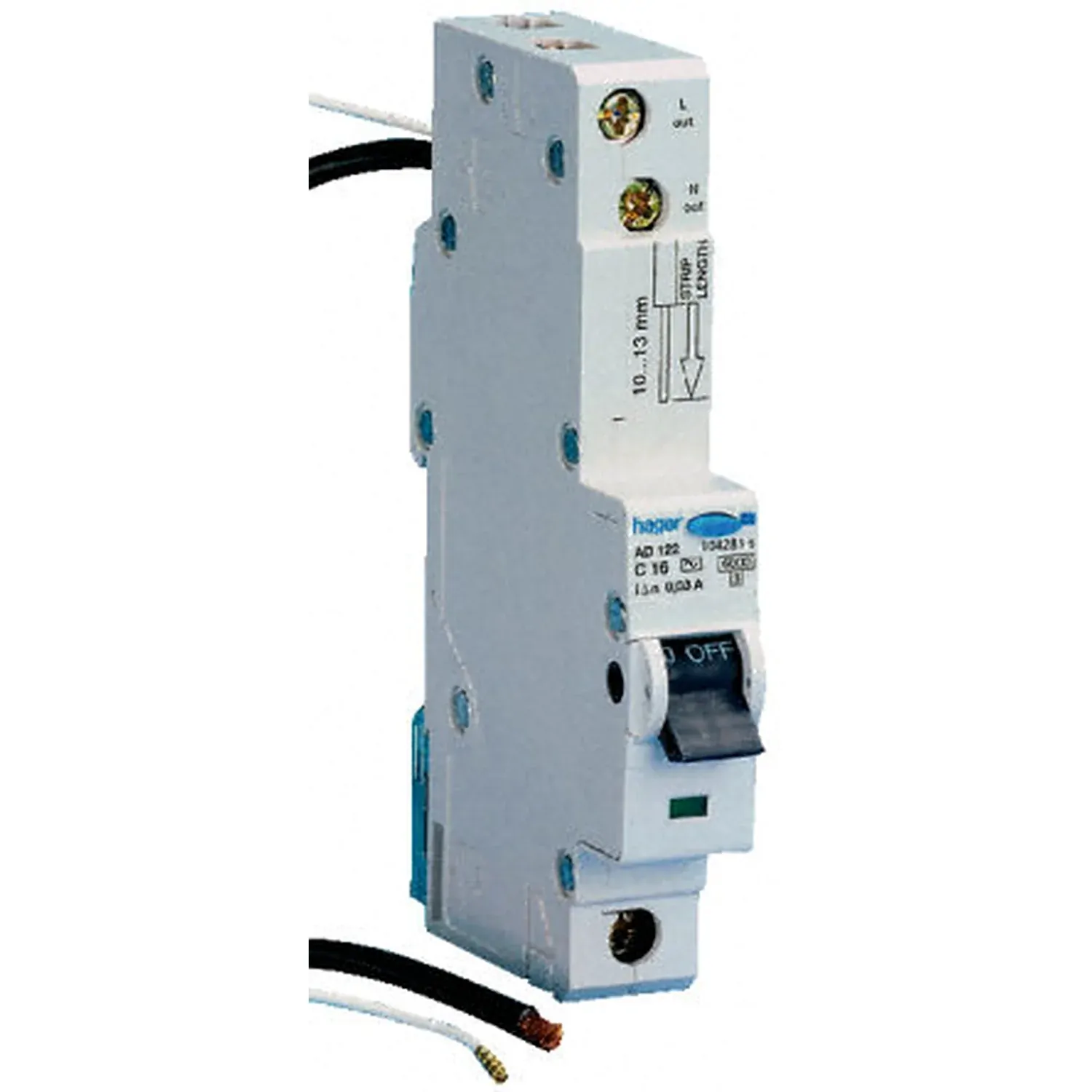

        HAGER AD116B | 16Amp 10 kA Single Pole RCBO

        The Hager AD116B is a Residual Current Breaker with Overcurrent Protection.
        The product was designed to meet new wiring regulations to minimise injuries related to electric shock.
        The slimline device is also commonly referred to as a single pole combo and was developed to maximise space in domestic switchboards and load centres.
        The Hager 16 Amp 10kA Rcbo also saves time and money on installation. As both line and load terminals are non sensitive, rewiring is not required if replacing an alternative brand.

        This is a single pole MCB/RCD combination - It only takes up the space of 1 module in a switchboard or sub board.

        Electrically Bi-directional

        Switched Neutral

        Insulation Resistance test is faster to perform

        Built in fault trip indicator

        Features:

        • Rated current (In): 16A
        • Rated voltage (Un): 240V
        • MCB/RCD
        • Rated residual operating current (I n) 30mA
        • Curve Type C
        • Operating characteristic Type A
        • Rated Frequency 50Hz
        • Rated short-circuit capacity (Icn) 10kA
        • IP rating or Protection degree IP2x terminals
        • Standard AS/NZS 61009

        Switched Neutral Applications:
        Accommodate the requirement for switched neutral applications with a smaller footprint.
        Examples include: - Construction sites (temporary boards) - Transportable structures (demountable, caravans, motorhomes etc) - Patient areas - Shows and carnivals - EVCS - Solar (PV) installations

        This product has been replaced with

        Hager ADC216B | 16Amp 10kA Single Pole RCBO
        Hager ADC216B | 16Amp 10kA Single Pole RCBO

        $80.25 $72.95 ex. GST

        See Options

        (AD116B)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU AD116B
        Barcode # 3250611043003
        Shipping Weight 0.1930kg
        Shipping Width 0.035m
        Shipping Height 0.075m
        Shipping Length 0.145m
        Shipping Cubic 0.000381000m3
        View Datasheet
        TYPE VALUE
        Type Circuit Protection
        Brand Hager Electrical
        Rated Current (A) 16
        Height (mm) 115
        Width (mm) 17.5
        Depth (mm) 70
        Standards AS/NZ 61009-1
        Mounting Din Rail
        Curve C
        Voltage (V) 240V
        Earth Leakage Protection Class Type A
        Earth Leakage Sensitivity 30mA
        Box increments (This item is sold individually) 54
        Residual Current 30mA
        Breaking Capacity 10kA
        Overcurrent trip characteristic C Curve
        Earth Fault Wave Form Type A
        IP Rating IP20 ( IP40 Enclosed )
        Number of Poles 1P+N
