Learn more by watching our HAGER AD132B | 32Amp 10 kA Single Pole RCBO video.

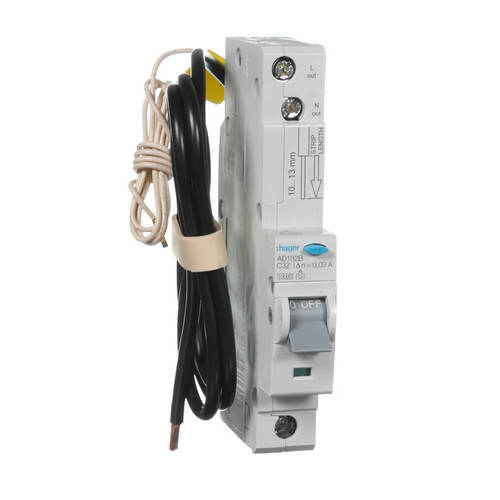

The Hager AD132B is a Residual Current Breaker with Overcurrent Protection.
The product was designed to meet new wiring regulations to minimise injuries related to electric shock.
The slimline device is also commonly referred to as a single pole combo and was developed to maximise space in domestic switchboards and load centres.
The Hager 32 Amp 10kA Rcbo also saves time and money on installation. As both line and load terminals are non sensitive, rewiring is not required if replacing an alternative brand.
This is a single pole MCB/RCD combination - It only takes up the space of 1 module in a switchboard or sub board.
Electrically Bi-directional
Switched Neutral
Insulation Resistance test is faster to perform
Built in fault trip indicator
Features:
Switched Neutral Applications:
Accommodate the requirement for switched neutral applications with a smaller footprint.
Examples include: - Construction sites (temporary boards) - Transportable structures (demountable, caravans, motorhomes etc) - Patient areas - Shows and carnivals - EVCS - Solar (PV) installations
(AD132B)
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Hager Electrical |
| SKU | AD132B |
| Barcode # | 3250611068617 |
| Shipping Weight | 0.2290kg |
| Shipping Width | 0.035m |
| Shipping Height | 0.075m |
| Shipping Length | 0.145m |
| Shipping Cubic | 0.000381000m3 |
| TYPE | VALUE |
|---|---|
| Type | Circuit Protection |
| Brand | Hager Electrical |
| Rated Current (A) | 32 |
| Height (mm) | 115 |
| Width (mm) | 17.5 |
| Depth (mm) | 70 |
| Standards | AS/NZ 61009-1 |
| Mounting | Din Rail |
| Curve | C |
| Voltage (V) | 240V |
| Earth Leakage Protection Class | Type A |
| Earth Leakage Sensitivity | 30mA |
| Box increments (This item is sold individually) | 54 |
| Residual Current | 30mA |
| Breaking Capacity | 10kA |
| Overcurrent trip characteristic | C Curve |
| Earth Fault Wave Form | Type A |
| IP Rating | IP20 ( IP40 Enclosed ) |
| Number of Poles | 1P+N |
