        Description

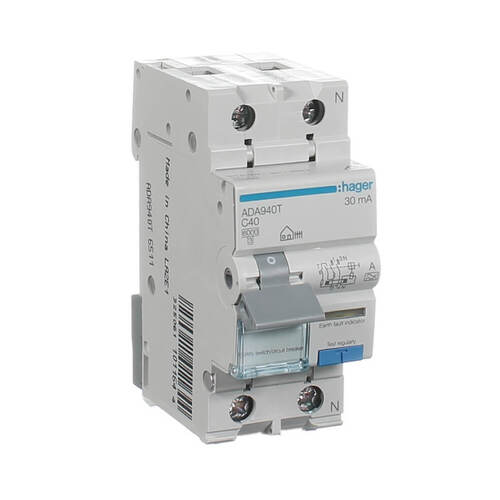

        HAGER ADA940T | 40 Amp 2 Pole 6kA | 30mA RCD/MCB RCBO

        The Hager ADA940T 40 amp 2 pole RCBO is a C Curve safety switch all in one unit. It has a 6kA rating ideal for commercial and residential applications. The RCD/MCB combo will protect property and life should current be detected leaking to earth within 30mA. The switch has an inbuilt test switch and is easily reset after the fault is rectified.

        The ADA940T is generally installed on 1 phase circuits to protect motors, appliances and control equipment.

        Features

        • Rated current 40 A
        • Breaking Current 6 kA
        • Number of modules 2
        • Number of poles 2 P
        • Curve C
        • Rated operational AC voltage 240 V
        • Rated residual operating current 30 mA
        • Residual current type A
        • Frequency 50 Hz
        • Rated insulation voltage 500 V
        • Rated impulse withstand voltage 4000 V
        • Operating temperature -25 to 40 °C
        • Electric endurance in number of cycles 2000
        • Number of mechanical operations 2000
        • Connection cross-sect. rigid cable 1 / 25mm²
        • Connection cross-sect. flexible cable 1 / 16mm²
        • Tightening torque 2,1Nm
        • Height of installed product 83 mm
        • Width of installed product 35 mm
        • Depth of installed product 68 mm

        (ADA940T)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU ADA940T
        Barcode # 3250611011644
        Package Weight 0.252kg
        Package Width 0.081m
        Package Height 0.040m
        Package Length 0.095m
        TYPE VALUE
        Type Circuit Protection
        Brand Hager Electrical
        Range ADA
        Rated Current (A) 40
        Height (mm) 83
        Width (mm) 35
        Depth (mm) 68
        Standards AS/NZ 61009-1
        Mounting Din Rail
        Voltage (V) 240
        Number of Poles 2
        IP Rating IP20 ( IP40 Enclosed )
        Breaking Capacity 6kA
        Neutral Position Right
        Earth Leakage Sensitivity 30mA
        Earth Leakage Protection Class Type A
        Curve C
