        Learn more by watching our HAGER ADD910T | 10 Amp 1P + N 30mA 6kA RCBO | D Curve video.

        Description

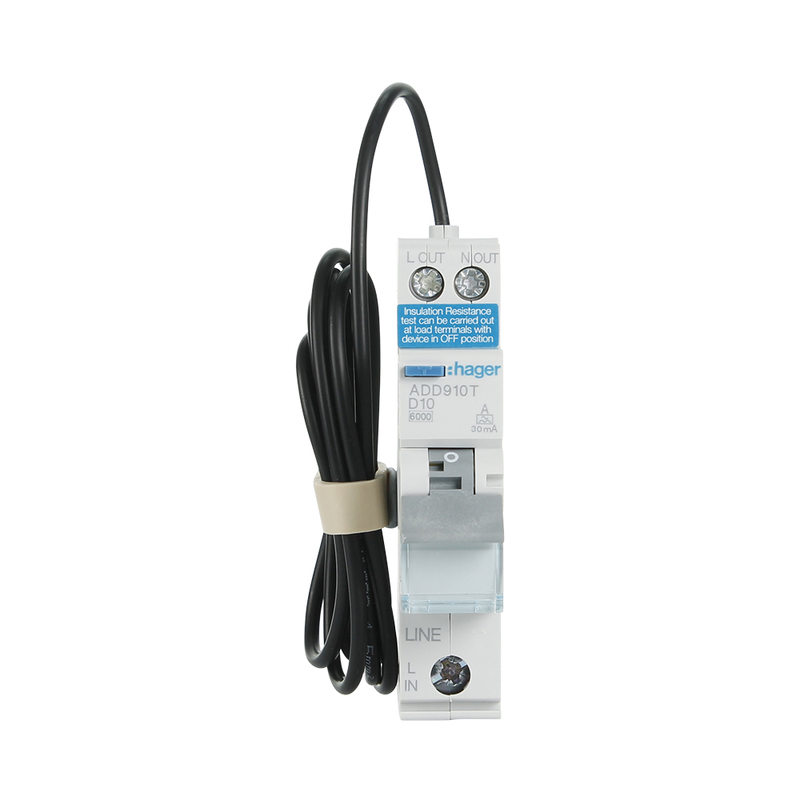

        HAGER ADD910T | 10 Amp 1P + N 30mA 6kA RCBO | D Curve

        Description:

        The Hager ADD910T is a D Curve 1 Pole + Neutral RCBO that protects and controls power and lighting circuits. The ADD910T RCBO is rated at 6kA and is suitable for commercial and Industrial applications.

        D Curve Applications:

        Designed for loads with high inrush currents. The new D curve overcurrent protection is ideal for ensuring continuity of service while offering RCD protection.

        Examples include:

        • Heavy machinery
        • Large pumps and motors
        • Some EVCS

        Features:

        • Number of poles: 2P
        • Type of pole: 1P+N
        • Rated current: 10 A
        • Rated operational voltage Ue: 230 / 240 V
        • Frequency: 50 Hz
        • Rated residual operating current: 30 mA
        • RCBO D curve din rail mounted
        • Concurrently switches N-neutral
        • With fault indicator
        • Rated insulation voltage 440 V
        • Max operating voltage 264 V
        • Rated impulse withstand voltage 4 kV
        • Depth of installed product: 70 mm
        • Height of installed product: 85 mm
        • Width of installed product: 17.7 mm

        (ADD910T)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU ADD910T
        Barcode # 3250611033400
        Package Weight 0.163kg
        Package Width 0.150m
        Package Height 0.076m
        Package Length 0.038m
        TYPE VALUE
        Type Circuit Protection
        Brand Hager Electrical
        Mounting Din Rail
        Voltage (V) 250
        Number of Poles 2 P
        Frequency 50 Hz
        Curve D
        Depth of installed product 70 mm
        Height of installed product 85 mm
        Width of installed product 17.7 mm
        Type of pole 1P+N
