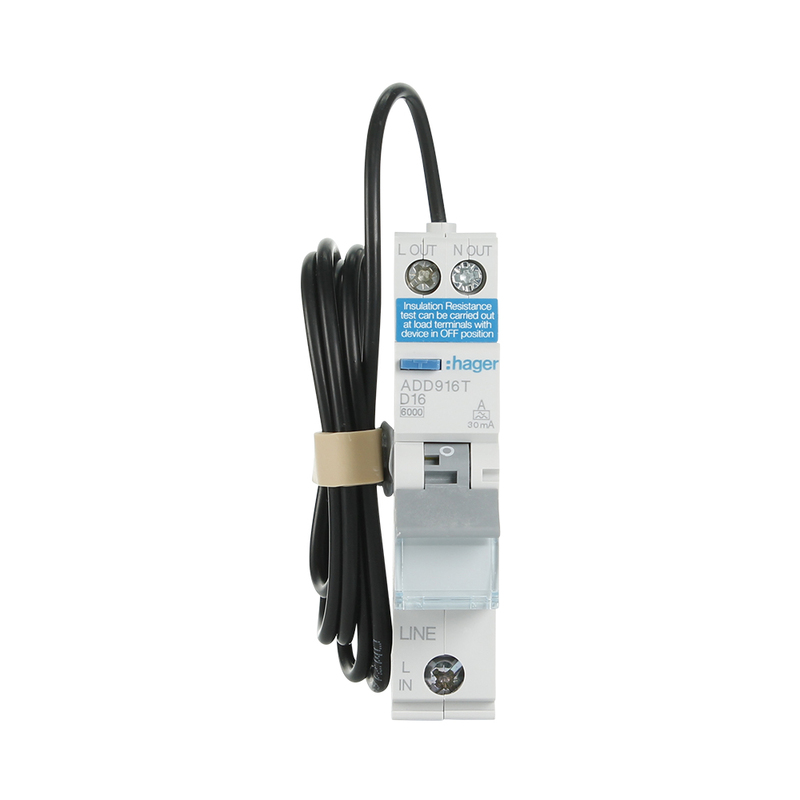

        HAGER ADD916T | 16 Amp 1P + N 30mA 6kA RCBO | D Curve

        Description:

        The Hager ADD916T is a D Curve 1 Pole + Neutral RCBO that protects and controls power and lighting circuits. The ADD916T RCBO is rated at 6kA and is suitable for commercial and industrial applications.

        D Curve Applications:

        Designed for loads with high inrush currents. The new D curve overcurrent protection is ideal for ensuring continuity of service while offering RCD protection.

        Examples include:

        • Heavy machinery
        • Large pumps and motors
        • Some EVCS

        Features:

        • Number of poles: 2P
        • Type of pole: 1P+N
        • Rated current: 16 A
        • Rated operational voltage Ue: 230 / 240 V
        • Frequency: 50 Hz
        • Rated residual operating current: 30 mA
        • RCBO D curve din rail mounted
        • Concurrently switches N-neutral
        • With fault indicator
        • Rated insulation voltage 440 V
        • Max operating voltage 264 V
        • Rated impulse withstand voltage 4 kV
        • Depth of installed product: 70 mm
        • Height of installed product: 85 mm
        • Width of installed product: 17.7 mm

        (ADD916T)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU ADD916T
        Barcode # 3250611033424
        Shipping Weight 0.1630kg
        Shipping Width 0.150m
        Shipping Height 0.076m
        Shipping Length 0.038m
        Shipping Cubic 0.000433200m3
        TYPE VALUE
        Type Circuit Protection
        Brand Hager Electrical
        Mounting Din Rail
        Voltage (V) 250
        Number of Poles 2 P
        Frequency 50 Hz
        Curve D
        Rated Current 16A
        Depth of installed product 70 mm
        Height of installed product 85 mm
        Width of installed product 17.7 mm
        Type of pole 1P+N
