        Learn more by watching our HAGER ADM425T | 25 Amp 4 Pole 6kA | 30mA RCD/MCB Combo video.

        Description

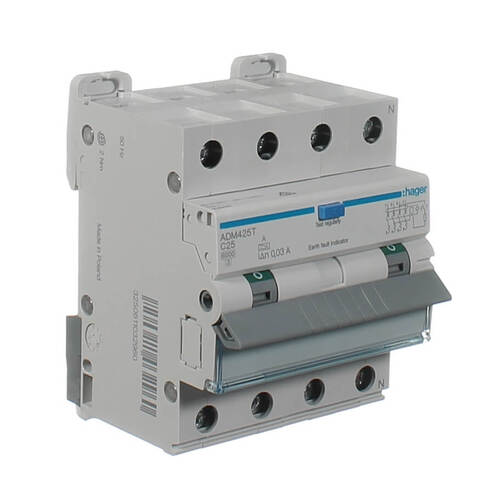

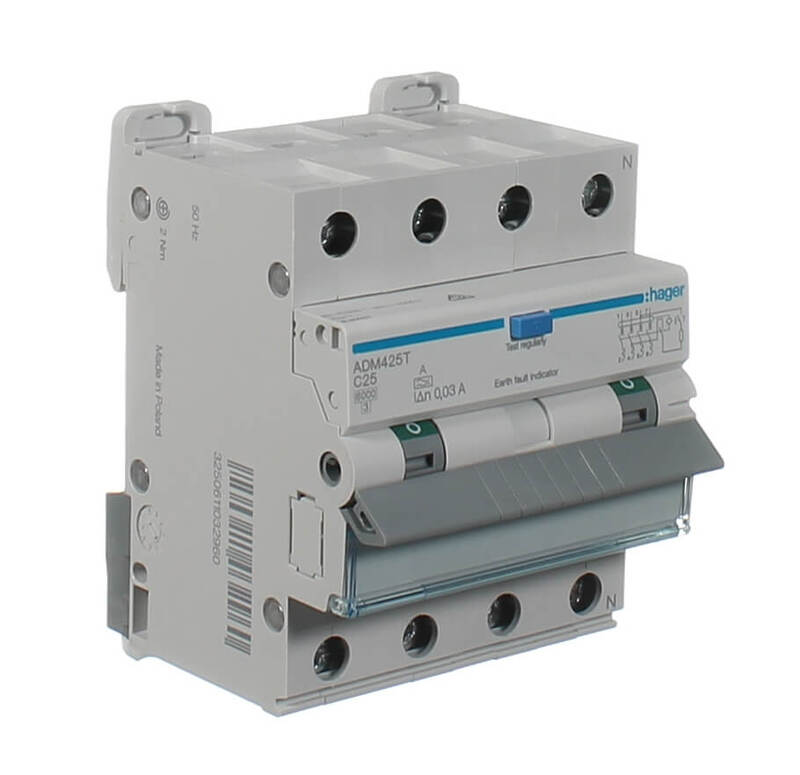

        HAGER ADM425T | 25 Amp 4 Pole 6kA | 30mA RCD/MCB Combo

        The Hager ADM425T 25 amp 4 pole RCBO is a C Curve safety switch all in one unit. It has a 6kA rating ideal for commercial and residential applications. The RCD/MCB combo will protect property and life should current be detected leaking to earth within 30mA. The switch has an inbuilt test switch and is easily reset after the fault is rectified.

        The ADM425T is generally installed on 3 phase circuits such as motors, appliances and control equipment.

        Features:

        • 25 Amps
        • Breaking Current 6kA
        • Number of modules: 4
        • Number of poles: 4 P
        • Curve: C
        • Rated operational voltage Ue: 240/415 V
        • Rated residual operating current: 30 mA
        • Residual current type: A
        • Frequency: 50 Hz
        • Rated insulation voltage: 500 V
        • Rated impulse withstand voltage: 4 kV
        • Operating temperature: -25 to 40 °C
        • Electric endurance in number of cycles: 2000
        • Number of mechanical operations: 4000
        • Tightening torque: 2Nm
        • Height of installed product: 84 mm
        • Width of installed product: 71 mm
        • Depth of installed product: 70 mm
        • Fixing mode: Din-Rail
        • Standard text IEC 61009-1 ; AS/NZ 61009-1

        (ADM425T)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU ADM425T
        Barcode # 3250611032960
        Package Weight 0.446kg
        Package Width 0.075m
        Package Height 0.077m
        Package Length 0.100m
        TYPE VALUE
        Type Circuit Protection
        Brand Hager Electrical
        Range ADM
        Rated Current (A) 25
        Height (mm) 84
        Width (mm) 71
        Depth (mm) 70
        Standards AS/NZ 61009-1
        Mounting Din Rail
        Voltage (V) 240/415
        Number of Poles 4
        IP Rating IP20 ( IP40 Enclosed )
        Breaking Capacity 6kA
        Neutral Position Right
        Earth Leakage Sensitivity 30mA
        Earth Leakage Protection Class Type A
        Curve C
