        Learn more by watching our HAGER HMF190T | 100Amp Single Pole 10kA Circuit Breaker | C Curve video.

        Description

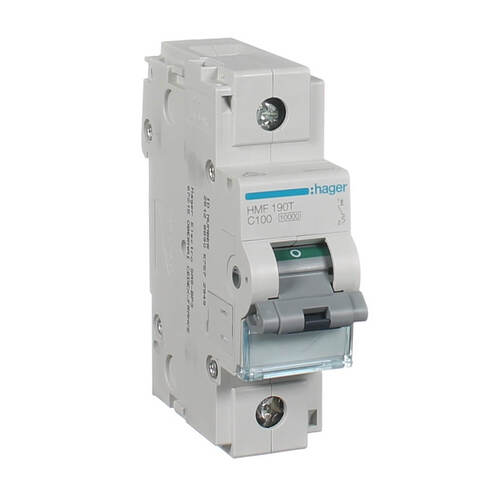

        HAGER HMF190T | 100Amp Single Pole 10kA Circuit Breaker | C Curve

        The Hager HMF190T is a C Curve single pole circuit breaker which protects and control circuits against overloads and short-circuits. The HMF190T circuit breaker is rated at 10kA and is suitable for commercial and Industrial applications.

        Features:

        • Single Pole
        • 1.5 Module Wide
        • 100amp
        • 10KA
        • C- Curve

        (HMF190T)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU HMF190T
        Barcode # 3250613231101
        Package Weight 0.256kg
        Package Width 0.080m
        Package Height 0.098m
        Package Length 0.040m
        TYPE VALUE
        Type Circuit Protection
        Brand Hager Electrical
        Rated Current (A) 100
        Height (mm) 90
        Width (mm) 27
        Depth (mm) 70
        Standards AS/NZS 60898-1
        Mounting Din Rail
        Voltage (V) 240V
        Number of Poles 1.5
        IP Rating IP20 ( IP40 Enclosed )
        Breaking Capacity 10kA
        Curve C
