    Learn more by watching our HAGER MSN140 | 40Amp Single Pole 6kA C-Curve Circuit Breaker video.

    Description

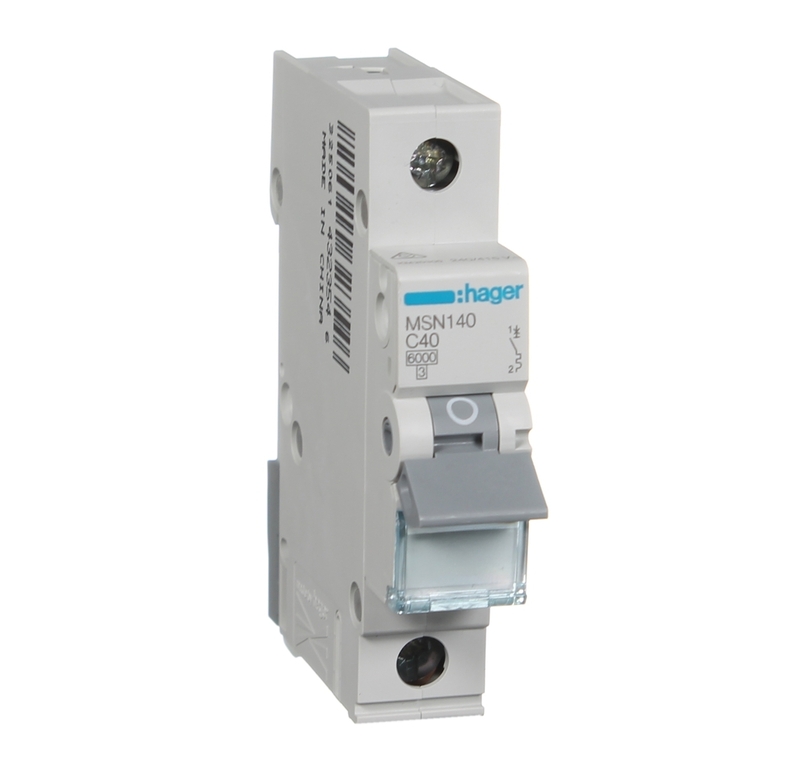

    HAGER MSN140 | 40Amp Single Pole 6kA C-Curve Circuit Breaker

    The Hager MSN140 protects and control circuits against overloads and short-circuits. The MSN140 circuit breaker is rated at 6kA and is suitable for commercial and domestic applications.

    Features

    • 40 Amp
    • Single Pole
    • 6KA
    • Circuit Breaker
    • Complies with AS/NZS 60898
    • Tripping curve - ‘C’ magnetic setting between 5 and 10In
    • Breaking capacity: 6000A
    • Voltage rating: 240AC
    • Bi-connect allowing two connection points Connection capacity
    • 25mm2 rigid
    • 16mm2 flexible

    (MSN140)

    Warranty

    Warranty starts from Invoice Date

    Domestic Use: 2 Year
    Commercial Use: 2 Year
    Warranty Method: Return to Sparky Direct

    Specifications

    These specifications and characteristics outline physical, mechanical, electrical details.

    Brand Hager Electrical
    SKU MSN140
    Barcode # 3250614323546
    Package Weight 0.119kg
    Package Width 0.073m
    Package Height 0.018m
    Package Length 0.083m
    TYPE VALUE
    Type Circuit Protection
    Brand Hager Electrical
    Rated Current (A) 40
    Height (mm) 83
    Width (mm) 17.10
    Depth (mm) 70
    Standards AS/NZS 60898
    Mounting Din Rail
    Voltage (V) 240V
    Number of Poles 1
    IP Rating IP20 ( IP40 Enclosed )
    Breaking Capacity 6kA
    Curve C
