        Learn more by watching our HAGER SBR380 | Main switch three pole 80 amp video.

        Description

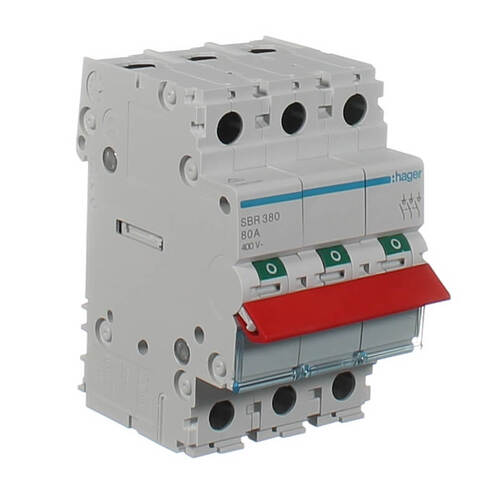

        HAGER SBR380 | Main switch three pole 80 amp

        The Hager SBR380 is a main switch with a red toggle. The SBR380 is rated at 80 amps and is designed to isolate a load. Great for inductive and resistive loads. The Hager SBR380 mounts on to din rail. Strong and durable will provide 40000 mechanical operations

        Features:

        • Main Switch
        • Three Pole
        • 80 Amp
        • Red Toggle
        • Din Rail Mount
        • Depth 68mm
        • Height 83mm
        • Width 52.5mm
        • Install Rigid cables from 6mm² - 50mm²
        • Install Flexible conductors 6mm² - 35mm²

        (SBR380)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU SBR380
        Barcode # 3250615510440
        Shipping Weight 0.2520kg
        Shipping Width 0.079m
        Shipping Height 0.056m
        Shipping Length 0.095m
        Shipping Cubic 0.000420000m3
        TYPE VALUE
        Type Circuit Protection
        Brand Hager Electrical
        Rated Current (A) 80
        Height (mm) 83
        Width (mm) 52.5
        Depth (mm) 68
        Standards IEC/EN 60947-3
        Mounting Din Rail
        Voltage (V) 400
        Number of Poles 3
        IP Rating IP20 ( IP40 Enclosed )
        Box increments (This item is sold individually) 1
        Curve C
        Total Number of modules 3
