        Learn more by watching our HAGER SF263 | Changeover Switch 2 Pole 63 Amp video.

        Description

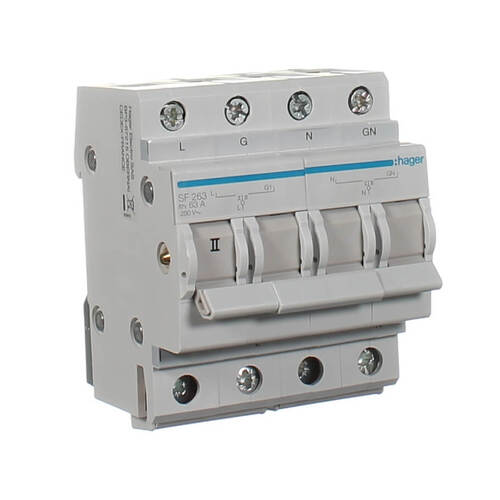

        HAGER SF263 | Changeover Switch 2 Pole 63 Amp

        SF263 changeover switch.

        What is a change over switch? A changeover switch switches a house's electricity supply from the general grid power supply to a "generator system" in case of power outage. The changeover switch connects to the main power grid, generator or alternate source and the house wiring. When you switch or "Change over" all the power on that circuit changes from either Grid or Generator. (not allowing it to flow back into each other (Grid and generator))

        Features:

        • Rated current 63 A
        • 240V
        • Rated operational AC voltage 400 V
        • Frequency 50/60 Hz
        • type of connection with screw
        • Connection cross-sect. rigid cable 25mm²
        • Connection cross-sect. flexible cable 16mm²
        • Number of mechanical operations 100000
        • Electrical durability at nominal load in AC21in
        • operating cycles 5000
        • Operating temperature -20 to 50 °C
        • Storage temperature -40 to 80 °C
        • Protection index IP 20
        • Number of modules 4

        (SF263)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU SF263
        Barcode # 3250615561008
        Shipping Weight 0.3640kg
        Shipping Width 0.079m
        Shipping Height 0.073m
        Shipping Length 0.095m
        Shipping Cubic 0.000548000m3
        TYPE VALUE
        Type Circuit Protection
        Brand Hager Electrical
        Rated Current (A) 63
        Height (mm) 90
        Width (mm) 71.5
        Depth (mm) 72
        Mounting Din Rail
        Voltage (V) 240
        Number of Poles 2
        IP Rating IP20 ( IP40 Enclosed )
        Breaking Capacity 4.5kA
        Box increments (This item is sold individually) 1
        Curve C
        Total Number of modules 4
