        Learn more by watching our HAGER SF463 | Changeover Switch 4 Pole 63 Amp video.

        Description

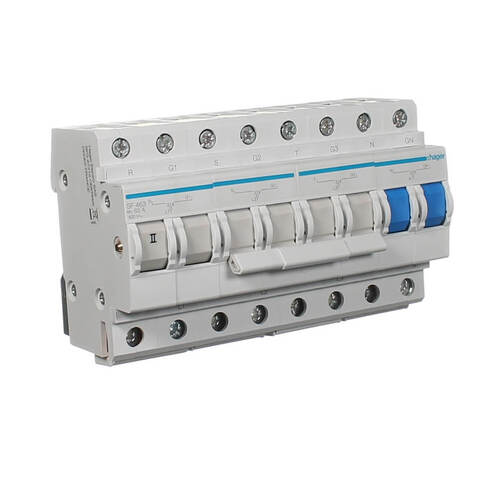

        HAGER SF463 | Changeover Switch 4 Pole 63 Amp

        SF463 changeover switch.

        What is a change over switch? A changeover switch switches a house's electricity supply from the general grid power supply to a "generator system" in case of power outage. The changeover switch connects to the main power grid, generator or alternate source and the house wiring. When you switch or "Change over" all the power on that circuit changes from either Grid or Generator. (not allowing it to flow back into each other (Grid and generator))

        Technical Properties

        • Rated current 63 A
        • 400V
        • Rated operational AC voltage 400 V
        • Frequency 50/60 Hz
        • type of connection with screw
        • Connection cross-sect. rigid cable 25mm²
        • Connection cross-sect. flexible cable 16mm²
        • Number of mechanical operations 100000
        • Electrical durability at nominal load in AC21in
        • operating cycles 5000
        • Operating temperature -20 to 50 °C
        • Storage temperature -40 to 80 °C
        • Protection index IP 20
        • Number of modules 8

        Download SF463 Hager pdf

        (SF463)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU SF463
        Barcode # 3250615561015
        Shipping Weight 0.7260kg
        Shipping Width 0.095m
        Shipping Height 0.079m
        Shipping Length 0.190m
        Shipping Cubic 0.001426000m3
        TYPE VALUE
        Type Circuit Protection
        Brand Hager Electrical
        Rated Current (A) 63
        Height (mm) 90
        Width (mm) 143
        Depth (mm) 72
        Mounting Din Rail
        Voltage (V) 400
        Number of Poles 4
        IP Rating IP20 ( IP40 Enclosed )
        Breaking Capacity 4.5kA
        Box increments (This item is sold individually) 1
        Curve C
        Total Number of modules 8
