        Learn more by watching our Hager EH010 | Single pole timer 24 hour 16(4)amp Analogue (No Back up Battery) video.

        Description

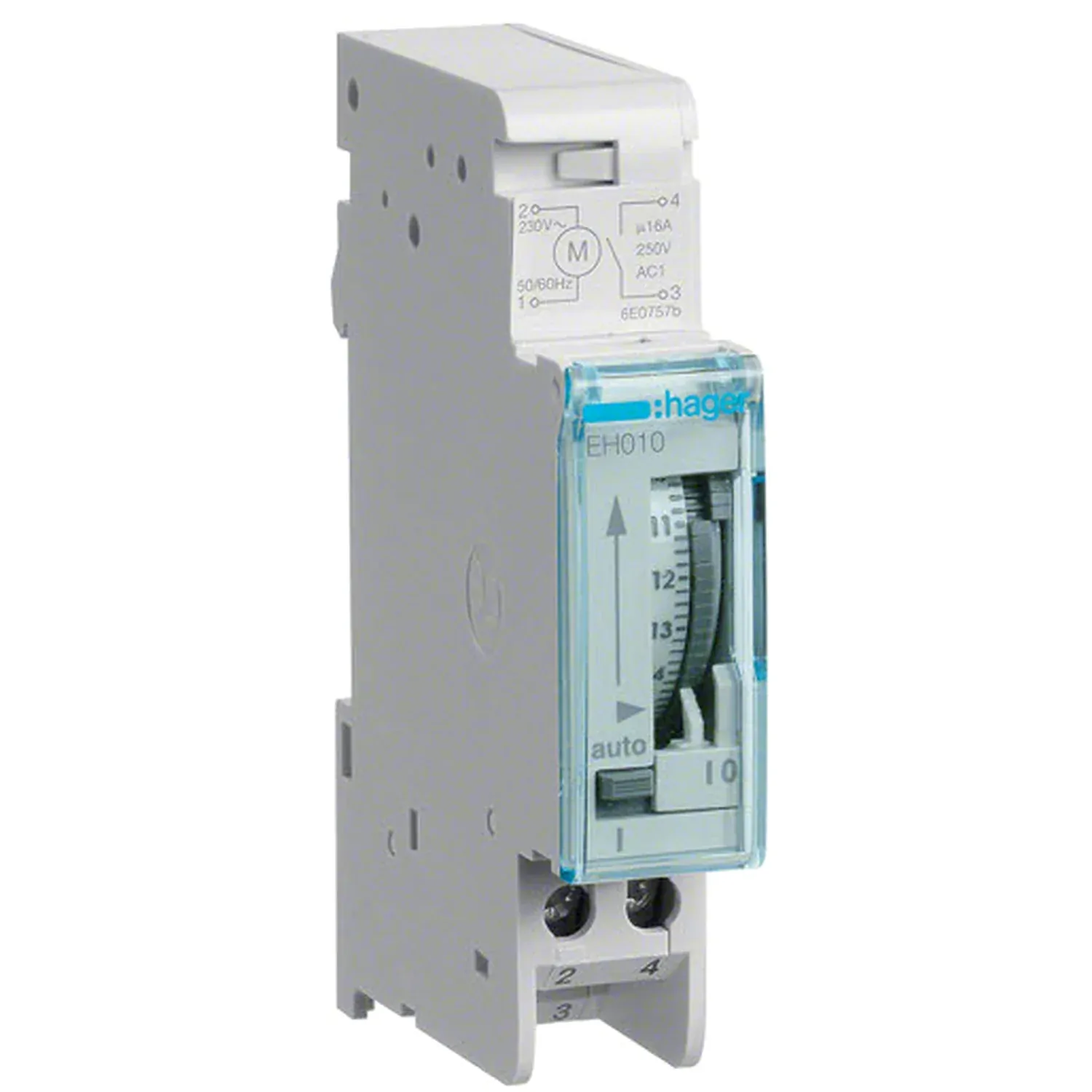

        Hager EH010 | Single pole timer 24 hour 16(4)amp Analogue (No Back up Battery)

        The Hager EH010 single pole timer can be set to operate 96 different steps in a 24 hour period. It is rated at 16amps AC1 max power with an incandescent lamp is 900W. Ideal for controlling lights, small fountain pumps, LED.

        If you are controlling a motor or element, you must use a contactor otherwise you may burn the timer out.

        Features

        • Summer / Winter time change manual
        • Shortest switching time 15 mn
        • Program cycles Programme cycle: 24 hours
        • Programming cycle 24H
        • Type of programming analog
        • Din Rail Mounting

        Loads the timer can control without a contactor

        • Fluorescent bulbs control
          • Compact fluorescent lamps max. 100 W
        • Incandescent bulbs control:
          • 230 V incandescent lamps and halogen lamps: max. 900 W

        You may need to install a contactor so you do not burn out the timer especially if you are controlling motors or elements.





        This product has been replaced with

        (EH010)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU EH010
        Barcode # 3250612280100
        Package Weight 0.085kg
        Package Width 0.095m
        Package Height 0.020m
        Package Length 0.080m
        TYPE VALUE
        Type Timer
        Brand Hager Electrical
        Rated Current (A) 16A (AC1)
        Height (mm) 92
        Width (mm) 18
        Depth (mm) 65
        Protection IP20
        Mounting Din Rail
        Battery Backup No
        Number of Modules 1
        Voltage (V) 240
        Programming Type Analog
        Program Time 24 Hours
        Reviews
        3.0

        2 Reviews
        5 STARS
        1
        4 STARS
        0
        3 STARS
        0
        2 STARS
        0
        1 STAR
        1

        Write a review

        Jules

        Easy to use - A child can set the timer on 24 March 2021

        Simple to use - My electrician installed this for our water fountain in our yard. I am able to set the on and off time just by sliding the pins. Nice plastic cover to protect the clock as well.

        Violet Houkamau

        User manual for EH010 timer on 15 May 2016

        I have the above timer but all the instructions are Italian. How can i get an English version
