        Description

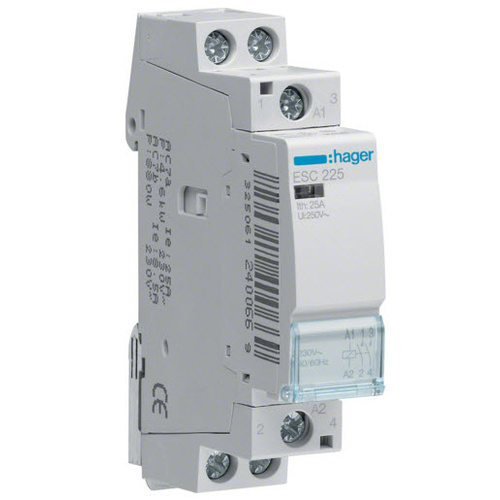

        Hager ESC225 | 25Amp 2 Pole Contactor 240V | 2 N/O

        A Contactor is an electrically controlled switch that is used to control a larger power load.

        The Hager ESC225 contactor is commonly controlled by a circuit with much less current then the contactor switch circuit. It is ideal for controlling the power to electric motors and large lighting applications.

        The ESC225 is a 25 Amp contactor - which is a perfect size to control the power going to a inductive load such as a pool pump, hot water system etc. Can be used in conjunction with any timer to satisfy inductive loads.

        Features:

        • Contactor
        • 240v
        • 2 Pole
        • 25amp
        • 2 Normally open
        Dimensions
        • Depth of installed product: 60 mm
        • Height of installed product: 83 mm
        • Width of installed product: 17,85 mm
        Fluorescent bulbs control
        • Max. load fluorescent lamp: 950 VA
        • Max. power with fluorescent parallel lamps: 810 VA
        • Fluorescent lamps in duo circuit: 1990 VA
        Incandescent bulbs control
        • Max. power with incandescent lamps: 1900 W

        (ESC225)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU ESC225
        Barcode # 3250612400669
        Package Weight 0.121kg
        Package Width 0.080m
        Package Height 0.020m
        Package Length 0.095m
        TYPE VALUE
        Type Circuit Protection
        Type Contactor
        Brand Hager Electrical
        Rated Current (A) 25
        Height (mm) 83
        Width (mm) 17.5
        Depth (mm) 60
        Protection IP20
        Mounting Din Rail
        Voltage (V) 240
        Number of Poles 2
        Contact Configuration 2 x N/O
        Number of Modules 1
