        Learn more by watching our Hager ESC263 | 63Amp 2 Pole Contactor 240V | 2 N/O video.

        Description

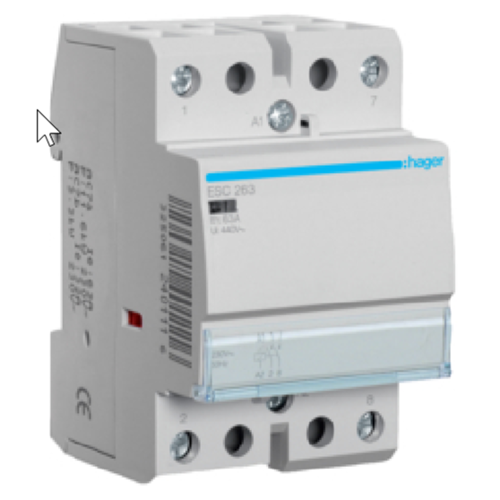

        Hager ESC263 | 63Amp 2 Pole Contactor 240V | 2 N/O

        A Contactor is an electrically controlled switch that is used to control a larger power load.

        The Hager ESC263 contactor is commonly controlled by a circuit with much less current then the contactor switch circuit. It is ideal for controlling the power to electric motors and large lighting applications.

        The ESC263 is a 63 Amp contactor - which is a perfect size to control the power going to a inductive load such as a pool pump, hot water system etc. Can be used in conjunction with any timer to satisfy inductive loads.

        Features:

        • Contactor
        • 240V
        • 2 Pole
        • 63 Amp
        • 2 Normally open

        Dimensions

        • Depth of installed product: 60 mm
        • Height of installed product: 85 mm
        • Width of installed product: 54 mm

        Fluorescent bulbs control

        • Max. load fluorescent lamp: 3000 VA
        • Max. power with fluorescent parallel lamps: 2100 VA
        • Fluorescent lamps in duo circuit: 4700 VA

        Incandescent bulbs control

        • Max. power with incandescent lamps: 6500 W

        (ESC263)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU ESC263
        Barcode # 3250612401116
        Shipping Weight 0.3000kg
        Shipping Width 0.065m
        Shipping Height 0.054m
        Shipping Length 0.085m
        Shipping Cubic 0.000298000m3
        TYPE VALUE
        Type Contactor
        Brand Hager Electrical
        Rated Current (A) 63
        Height (mm) 83
        Width (mm) 35
        Depth (mm) 60
        Protection IP20
        Mounting Din Rail
        Voltage (V) 240
        Number of Poles 2
        Contact Configuration 2 x N/O
        Number of Modules 2
