        Learn more by watching our Hager ESC465 | 63Amp 4 Pole Contactor 240V | 2NO+2NC video.

        Description

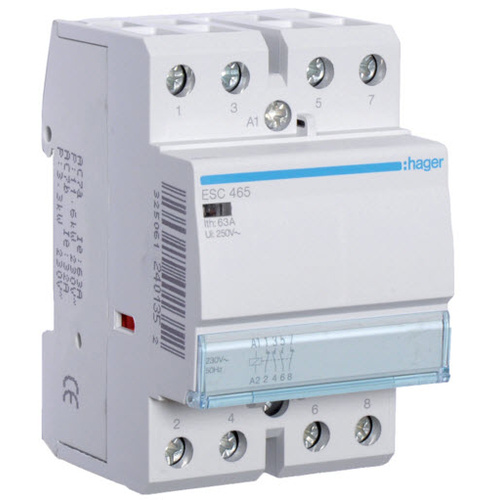

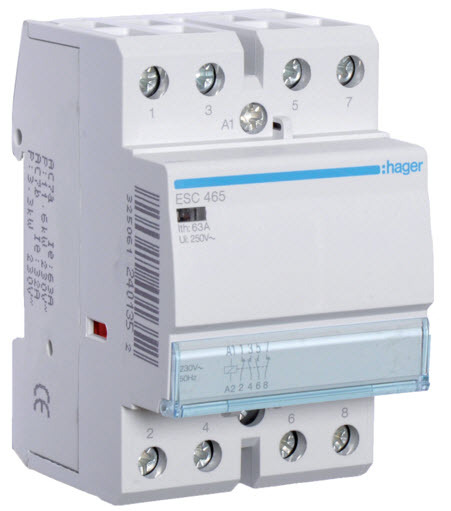

        Hager ESC465 | 63Amp 4 Pole Contactor 240V | 2NO+2NC

        A Contactor is an electrically controlled switch that is used to control a larger power load.

        The Hager ESC465 contactor is commonly controlled by a circuit with much less current then the contactor switch circuit. It is ideal for controlling the power to electric motors and large lighting applications.

        The ESC465 is a 63 Amp contactor - which is a perfect size to control the power going to a inductive load such as a pool pump, hot water system etc. Can be used in conjunction with any timer to satisfy inductive loads.

        Features:

        • Contactor
        • 63 Amp
        • 2NO+2NC
        • 230V

        Electric current

        • Acceptable current load with AC7 category A: 63 A
        • Acceptable current load with AC7 category B: 32 A
        • Thermal rated current outside of housings: 63A

        Dimensions

        • Depth of installed product: 60 mm
        • Height of installed product: 85 mm
        • Width of installed product: 54 mm

        Fluorescent bulbs control

        • Max. load fluorescent lamp: 3000 VA
        • Max. power with fluorescent parallel lamps: 2100 VA
        • Fluorescent lamps in duo circuit: 4700 VA

        Incandescent bulbs control

        • Max. power with incandescent lamps: 6500 W



        (ESC465)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU ESC465
        Barcode # 3250612401352
        Package Weight 0.353kg
        Package Width 0.078m
        Package Height 0.056m
        Package Length 0.095m
        TYPE VALUE
        Type Contactor
        Brand Hager Electrical
        Rated Current (A) 63
        Height (mm) 83
        Width (mm) 54
        Depth (mm) 60
        Protection IP20
        Mounting Din Rail
        Number of Poles 4
        Contact Configuration 2 x N/C & 2 x N/O
        Number of Modules 3
        Voltage (V) 240
