        Hager JG220IN | Weatherproof Switch 2 Pole 20 amp IP66
        $16.45 $14.95 ex. GST
        Video

        Learn more by watching our Hager JG220IN | Weatherproof Switch 2 Pole 20 amp IP66 video.

        Description

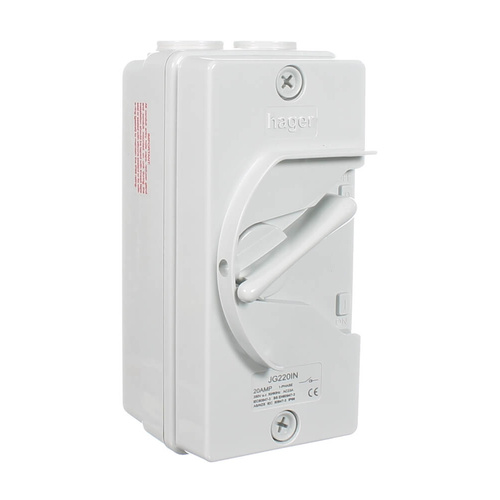

        Hager JG220IN | Weatherproof Switch 2 Pole 20 amp IP66

        The Hager JG220IN weatherprotected isolating switch is suitable for virtually any external application. The impact resistant base and cover will survive the hardest knocks in almost any installation. The two sections are sealed with a co-injection gasket. The range provides ample conduit entries and is suitable for side entry from a vertical duct. Its compact size means it is aesthetically pleasing and suits installations where space is limited such as with residential air conditioning, outdoor lighting and small motor control.

        Features

        • 1 gang weatherproof Isolating switch
        • 1 way switch, on/off switch 2 Pole
        • 8 mm diameter padlocking facility
        • Dimension: 170 mm Height x 84 mm Width x 87 mm Depth
        • Cables looped in and out from overhead
        • In and out from underground
        • In and out straight through the switch
        • Cables in through side and out through bottom
        • 4 x 25mm screwed conduit entries

        (JG220IN)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Clipsal in home warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU JG220IN
        Barcode # 3250617509688
        Shipping Weight 0.4300kg
        Shipping Width 0.095m
        Shipping Height 0.185m
        Shipping Length 0.095m
        Shipping Cubic 0.001670000m3
        TYPE VALUE
        Type Isolators & Switches Weatherproof
        Brand Hager Electrical
        Colour Grey
        Height (mm) 170
        Width (mm) 84
        Depth (mm) 87
        Protection IP66
        Voltage (V) 250 V
        Material PVC
        Conduit Entries 4 x 25mm screwed
