        Learn more by watching our Hager KB181A1 | 6 Module Insulated prong busbar 1P 80A 16mm² video.

        Description

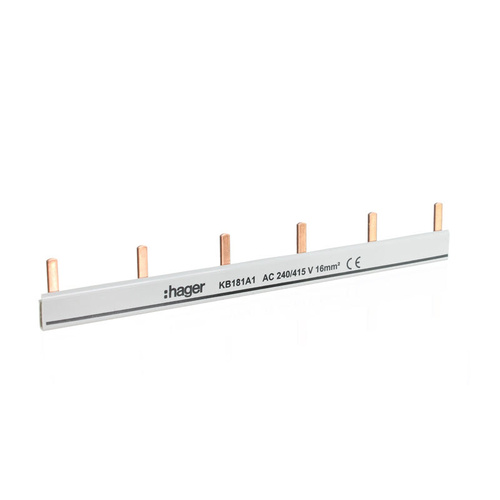

        Hager KB181A1 | 6 Module Insulated prong busbar 1P 80A 16mm²

        The Hager KB181A1 is a 6 module pin type copper busbar with plastic insulation on the body. It is designed for 1 phase connection. The comb busbar reduces wiring effort, makes for a safer installation as it prevents hot spots and can be installed faster than looping building wire.
        No looping required for active conductors.
        The teeth on the busbar has a 15mm pitch. Quality construction and tested to perform.

        Features:

        • Number of modules: 6
        • Number of poles: 1 P
        • Rated current: 80 A
        • Rated impulse withstand voltage: 4 kV
        • Connection cross-sect. rigid cable: 16mm²
        • Connector type: busbar prong
        • Isolated busbar: no
        • Length: 184 mm

        (KB181A1)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU KB181A1
        Barcode # 3250613730307
        Package Weight 0.036kg
        Package Width 0.027m
        Package Height 0.005m
        Package Length 0.187m
        TYPE VALUE
        Type Insulated Busbar
        Brand Hager Electrical
        Rated Current (A) 80
        Width (mm) 184
        Material Copper
        Number of Poles 1P
        Total Number of modules 6
