Kyoritsu 6010B | 5 In 1 Digital Multifunction Tester
Learn more by watching our Kyoritsu 6010B | 5 In 1 Digital Multifunction Tester video.
Description:
The Kyoritsu 6010B is a 5 in 1 Digital Multifunction Tester capable of continuity, insulation, loop and RCD testing as well as measuring continuous operating voltage of a protective device (Uc). The 6010B features an easy to use handheld design with built in memory (up to 300 results) and a large dual display with bright backlight and bargraph.
The Kyoritsu 6010B is an advanced multifunction meter that can perform continuity testing up to 200Ω with a short circuit currnet up to 200mA DC. Insulation resistance can also be measured up to 200MΩ with a 500 V DC test voltage. The 6010B integrates several safety features including a live circuit warning LED to indicate the circuit under test is live as well as integral overload protection on interal continuity and insulation test circuitry. Contact voltage (Uc) can also be measured up to 100V.
In addition, the Kyoritsu 6010B can perform loop and RCD testing. This includes testing across a large range of currents (10/30/100/300/500 mA) and an auto ramp function. The instrument also features a built memory to store up to 300 measured results. The results can then be downloaded to PC using the optional communication adaptor and PC software.

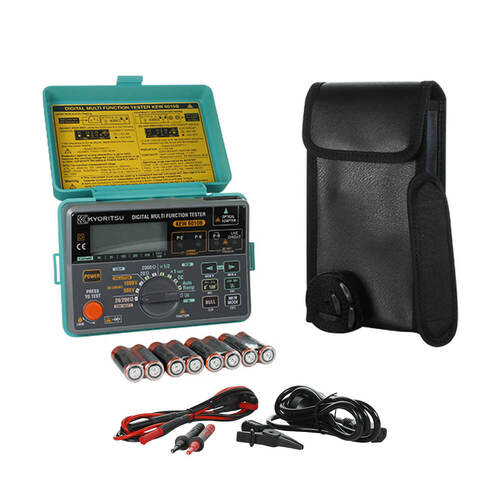

The Kyoritsu 6010B is supplied with test leads, case, shoulder strap and batteries.
Features:
(6010B)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
| Continuity Testing | ||
|---|---|---|
| Measuring Range | 20/200Ω (Auto-Ranging) | |
| Open Circuit Voltage | > 6V | |
| Short Circuit Current | > 200mA | |
| Accuracy | ±(3%rdg + 3dgt) | |
| Insulation Resistance Testing | ||
| Measuring Range | 20/200MΩ (Auto-Ranging) | |
| Test Voltage | 500/1000V | |
| Open Circuit Voltage | +20% - 0% | |
| Rated Current | > 1mA | |
| Accuracy | ± (3%rdg + 3dgt) | |
| Loop Impedance Testing | ||
| Impedance Range | 20/2000Ω | |
| Rated Voltage | 230V + 10% - 15%(50Hz) | |
| Normal Test Current | 20Ω:25A/10ms 2000Ω:15mA/350ms max. |
|
| Accuracy | ±(3%rdg + 8dgt) | |
| RCD Testing | ||
| Test Current (Test Current Duration) |
x1/2, x1 | 10, 30, 100, 300, 500mA (2000ms) |
| Fast | 150mA (50ms) | |
| DC | 10, 30, 100, 300mA (2000ms), 500mA (200ms) | |
| Auto Ramp | Goes up by 10% from 20% to 110% of IΔn. 300ms×10 | |
| Rated Voltage | 230V + 10% - 15% 50Hz | |
| Accuracy | Test Current | x1/2: -8%-2% x1, FAST: +2%+8% DC: ±10% Auto Ramp: ±4% |
| Trip Time | ±(1%rdg + 3dgt) | |
| Uc Testing | ||
| Measuring Range | 100V | |
| Rated Voltage | 230V + 10% - 15% (50Hz) | |
| Test Current | 5mA at IΔn = 10mA 15mA at IΔn = 30/100mA 150mA at IΔn = 300/500mA |
|
| Accuracy | +5% to +15%rdg±8dgt | |
| Safety Standard | IEC 61010-1 CAT III 300V Pollution Degree 2 IEC 61557-1, 2, 3, 4, 6, 10, IEC 60529 (IP40) |
|---|---|
| Power source | R6 or LR6 × 8 |
| Dimensions | 115(L) × 175(W) × 86(D)mm |
| Weight | 840g approx. |
| Included Accessories | 7122B (Test leads) KAMP10* (Test Lead with IEC Connector) *Australian plug Pouch for Test leads Shoulder Strap Shoulder Pad Instruction Manual |
| Optional Accessories | 7133B (Distribution board test leads) 8212-RS232C (RS232C adaptor with "KEW Report (Software)") 8212-USB (USB adaptor with "KEW Report (Software)") |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Kyoritsu |
| SKU | 6010B |
| Shipping Weight | 1.4030kg |
| Shipping Width | 0.210m |
| Shipping Height | 0.117m |
| Shipping Length | 0.150m |
| Shipping Cubic | 0.003685500m3 |
| TYPE | VALUE |
|---|---|
| Type | Multifunction Tester |
| Brand | Kyoritsu |
| Dimensions | 115(L) × 175(W) × 86(D)mm |
| Weight | 840g approx |
| Safety Standard | IEC 61010-1 CAT III 300V Pollution Degree 2 | IEC 61557-1, 2, 3, 4, 6, 10, IEC 60529 (IP40) |
| Continuity | 20/200Ω 200mA Test Current |
| Insulation | 500/1000V, 20/200MΩ 1mA Rated Test Current |
| Loop Impedance | 20/2000Ω 15mA Test Current at 2000Ω (No RCD Trip) |
| RCD | 10/30/100/300/500mA x1/2, x1, Fast Trip(40ms), DC, Auto Ramp |
