        Description

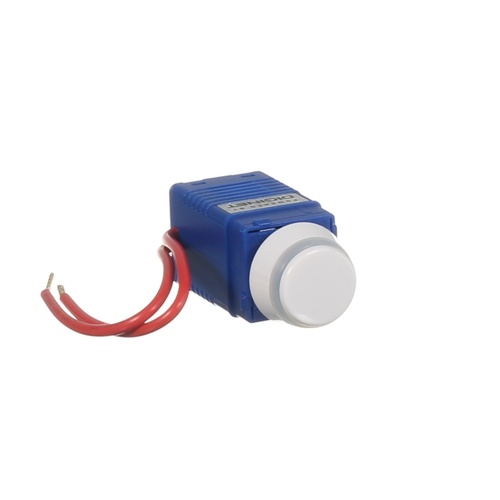

        DIGINET MEDM | Led Smart Phase Adaptive Dimmer Mechanism 400w

        Our best selling dimmer, it dims LED really well, The MEDM dimmer also dims the legacy lighting control products like incandescent, halogen and compact fluros.
        However the MEDM dimmer is made specifically for LED type Downlights. Offering 400w of load and 2w minimum load. This means that in residential or commercial environments electricians can install them and the occupants can use them day to day with no issues. No call backs, no returns.
        Rock solid dimming performance - Australian invention - Designed In Australia

        Features

        • Load Brightness <1% to >95% (Load Dependant)
        • Minimum Load = 2W
        • Fits Australian wall switch plate apertures (For example, the Sylvania Trader Cougar range, plus HPM and Clipsal ranges)
        • Separately switched 2-wire design – no neutral wire connection required for wall plate retrofit installation
        • An integrated LED indicator illuminates the dimmer knob and switch at low dimming levels
        • Incorporates a thermal fuse to protect itself against overheating
        • “Soft-start” to help prolong the lamp and driver life
        • Complies with all relevant Australian safety standards
        • Rotary control with mechanical adjsutment for minimum brightness level
        • stable operation with most non-dimmable lamps (to a limited dimming level, lamp dependent)

        (MEDM)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand DiginetControl Systems
        SKU MEDM
        Barcode # 9346051003630
        Package Weight 0.034kg
        Package Width 0.035m
        Package Height 0.030m
        Package Length 0.060m
        TYPE VALUE
        Type Dimmer
        Brand Diginet
        Colour White
        Height (mm) 32
        Width (mm) 34
        Wattage (W) 400
        Switch Type Rotary
        Dimming Universal
        Reviews
        5.0

        6 Reviews
        5 STARS
        5
        4 STARS
        1
        3 STARS
        0
        2 STARS
        0
        1 STAR
        0

        Write a review

        Mark M

        Works well on some LED lights - but not all on 14 February 2021

        We had these installed by an electrician in 8 rooms of our house. It worked in 4 rooms, but not the other 4 rooms. As the electrician left, he suggested we try other LED globes in the rooms where it was flickering. We tried many other "dimmable" LED globes and they still flickered with this dimmer switch unless fully on. Cannot solve the problem. May have to the change the whole wiring composition or replace all downlights in these rooms. So beware, this may not work with every single LED situation.

        Ian

        Best Dimmer Ever on 21 January 2021

        Finally, a dimmer that works really well with LEDs and stops the very annoying flickering during ripple injection events that we get here in Queensland. I thoroughly recommend this dimmer for all people suffering with intermittent flickering LEDs.

        Geoff

        Brilliant LED dimmer on 10 January 2021

        Wow, these dim LEDs right down to 0%. And smoothly. Very impressed.

        Judith Holmes

        MED/Led Dimmer on 8 May 2020

        Smooth dimming over full range of brightness. Thoroughly recommend this dimmer.

        JASON EVANS

        SIMPLY FIXES ALL FLICKERING OR VOLTAGE DROPS IN AL on 9 August 2019

        SIMPLY FIXES ALL FLICKERING OR VOLTAGE DROPS IN ALL LED LIGHTS - SIMPLY BRILLIANT AAA+++ FAST SERVICE - FAST DELIVERY - GREAT PRODUCT - ALL LIGHTING SHOPS NEED TO BE EDUCATED ON THIS REVOLUTIONARY DIMMER!!!

        Cam

        Great on 6 July 2019

        Perfect for LED downlights. Used in both HPM and Osram 800LM (7w & 8w LEDs in a group of four or more) downlights. Goes from full to completely off. Not like the standard dimmers or the LED DETA dimmers from Bunnings these actually dim! They have a green glow when the switch is on that is useful as you can have the lights on but dimmed off. Only negative is the need to be turned up say 10% to restart the LED. Not 100% but it does need to be about the lowest setting. These are the best I've found.
