        Major Tech MT587 | Diagnostic Insulation Tester 15kV | Metal Case
        $4,394.50 $3,995.00 ex. GST
        Video

        Learn more by watching our Major Tech MT587 | Diagnostic Insulation Tester 15kV | Metal Case video.

        Description

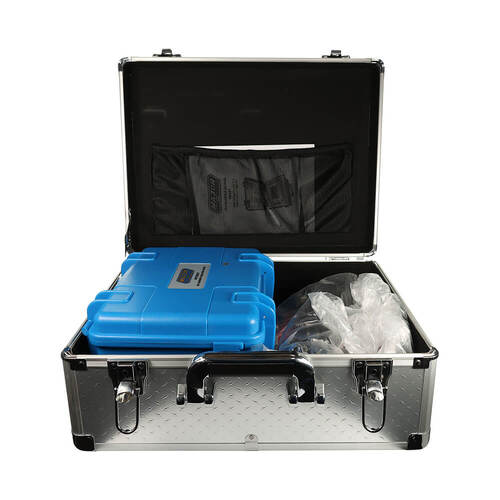

        Major Tech MT587 | Diagnostic Insulation Tester 15kV | Metal Case

        The Major Tech MT587 is a high-performance 15kV diagnostic insulation tester designed for professional electricians. This microprocessor-controlled device features a 4-bit large backlit display and provides precise measurements of insulation resistance up to 50TΩ.

        With test voltages ranging from 500V to 15kV and a short circuit current output of up to 6mA, the MT587 is ideal for testing insulation on rotating machines, transformers, cables, high-voltage generators, electric circuits, and surge arresters.

        It includes advanced functions like Dielectric Absorption Ratio (DAR) and Polarization Index (PI) indication, auto-ranging, adjustable test times, and data storage for up to 500 recordings. The robust metal case ensures durability for extended field use, and the device is powered by 12.6V rechargeable Lithium batteries.

        Diagnostic Insulation Tester Features:

        • Wide Test Voltage Range: Insulation test voltages from 500V to 15kV, with increments of 50V up to 10kV and 500V increments thereafter.
        • High Resistance Measurement: Measures insulation resistance up to 50TΩ.
        • Advanced Functions: Includes DAR and PI indications, auto-ranging, and adjustable test times.
        • Large Backlit Display: 4-bit backlit display for clear and easy reading.
        • Data Storage: Saves up to 500 recordings, which can be recalled and displayed.
        • Safety and Convenience: Automatically discharges the circuit after testing, auto power off, and alarm settings for measured values.
        • Versatile Measurement: Measures up to 750V AC and 1000V DC, and capacitance up to 50µF.
        • Robust Design: Housed in a durable metal case for extended field use, powered by 12.6V rechargeable Lithium batteries.
        • PC Connectivity: Data transfer to PC via optical USB and supplied software.

        MT587 FAQ:

        Q: What voltage range does the Major Tech MT587 cover?
        A: It covers insulation test voltages from 500V to 15kV, with increments of 50V up to 10kV and 500V increments thereafter.

        Q: What is the maximum insulation resistance the MT587 can measure?
        A: The MT587 can measure insulation resistance up to 50TΩ.

        Q: Can the MT587 store test results?
        A: Yes, it can save up to 500 test measurement results in its memory.

        Q: Is the MT587 suitable for field use?
        A: Yes, it is housed in a robust metal case for extended field use and powered by 12.6V rechargeable Lithium batteries, with data transferable to a PC via optical USB.

        (MT587)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features
        Specification Range Accuracy
        Insulation 500V - 2000GΩ
        1000V - 5000GΩ
        2500V - 1TΩ
        5kV - 10TΩ
        10kV - 35TΩ
        15kV - 50TΩ
        ±(3.0% +5)
        ±(3.0% +5)
        ±(3.0% +5)
        ±(3.0% +5)
        ±(3.0% +5)
        ±(3.0% +5)
        AC Voltage 0.1V – 750V ±(1.5% +3)
        DC Voltage 0.1V – 1000V ±(1.5% +3)
        DC Current 0.01nA – 6mA ±(5% +2)
        Capacitance 10nF – 50µF ±(10% +5)
        Short Circuit Current 6mA
        Current Measurement 0.1nA to 50µA (Depending on insulation resistance)
        Batteries 12.6V Rechargeable Lithium Batteries
        Dimensions 240 x 188 x 85mm
        Weight 2.75kg
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU MT587
        Barcode # 6008229041266
        Shipping Weight 6.3700kg
        Shipping Width 0.475m
        Shipping Height 0.400m
        Shipping Length 0.230m
        Shipping Cubic 0.043700000m3
        TYPE VALUE
        Type Diagnostic Insulation Tester
        Brand Major Tech
        Insulation Resistance 2000GΩ - 50TΩ
        AC Voltage 0.1V – 750V
        Included Carry Case, Meter, Test Line, USB, Charger
        DC Voltage 0.1V – 1000V
        Insulation 500V - 15kV
