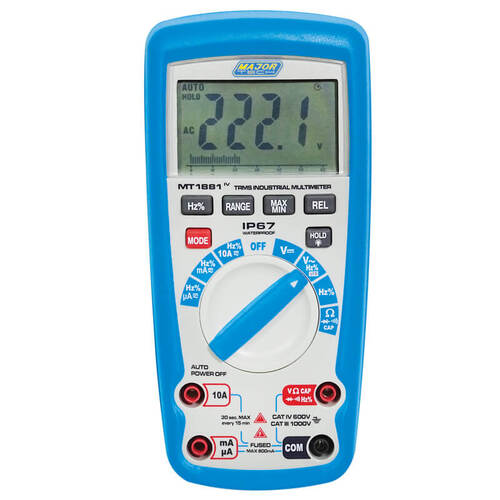

Name: Major Tech MT1881 | 1000V AC/DC IP67 True RMS Multimeter
Brand: Major Tech
SKU: MT1881
Price: 242.00 AUD
Availability: InStock

Major Tech MT1881 | 1000V AC/DC IP67 True RMS Multimeter

Description:

The MT1881 is a True RMS professional multimeter having a large 6000 count backlit LCD with a 61 segment analogue bar graph, especially designed for everyday use by electricians. Capable of measuring 1000V AC and DC, with added measuring ranges of Resistance, AC/DC Current, Capacitance and Frequency. The meter has been designed that should a user turn the rotary switch in any direction whilst an input of less than 1000V AC/DC is applied to the meter, the meter will not get damaged. NCV function, automatic Non-Contact voltage detection, the LCD backlight will glow red when AC voltage above 110V is sensed. The meter has a double moulded rubber case with IP67 waterproof and dustproof rating, rugged design for heavy duty use.

Features:

CAT IV 600V and CAT III 1000V

IP67 Dust & waterproof with O-ring sealed casing

NCV detection above 110V AC, LCD turns red to indicate presence of voltage

Auto range with manual override

Measures frequency range of 10Hz to 10MHz on electronic and electrical circuits

Measures AC and DC voltage to 1000V

Capacitance to 4000μF / Relative mode / Data hold

MIN/MAX recording mode

6000 Count LCD display and equipped with a 61 segment analogue bargraph

Full ranges protection & Auto power off

Overmould rubber housing & Integrated test lead holder

Blue backlight for dimly lit areas

Specifications

Function

Range

Resolution

Accuracy

DC Voltage

600mV – 1000V

±(0.5% + 5 Digits)

AC Voltage

6V – 1000V

±(0.8% + 4 Digits)

AC Voltage (VFD)

50V – 600V

0.1V

±(4.0% + 9 Digits)

DC Current

600uA – 10A

0.01A

±(1.0% + 3 Digits)

AC Current

600uA – 10A

0.01A

±(1.5% + 3 Digits)

Resistance

600Ω – 60MΩ

0.01MΩ

±(0.8% + 2 Digits)

Capacitance

60nF – 60mF

0.01mF

±(4.0% + 5 Digits)

Frequency (Electronic)

9.999Hz – 10MHz

0.01MHz

±(1.0% + 5 Digits)

Frequency (Electrical)

10 ~ 1KHz

0.0Hz

±(1.5% reading)

Duty Cycle

0.1% – 99.9%

0.1%

±(1.2% + 2 Digits)

AC Response

True RMS

Digital Display

6000 Count

Bargraph

61 Segmented

Continuity Test

Audible signal if the resistance is approx. 50Ω or less

Diode Test

Test current 0.9mA typical, open circuit voltage 3.2V DC typical

Non-Contact Voltage

Detection above 110V AC, LCD display turns red

Data Hold

Yes

Back Light

Yes

Enclosure

IP67 Dust & Waterproof Double Moulded

Battery

Dimensions

187 x 81 x 50mm

Weight

342g

TYPE

VALUE

Type

Multimeter

Brand

Major Tech
