        Learn more by watching our Major Tech MT1882 | 1000V AC/DC IP67 True RMS Multimeter video.

        Description

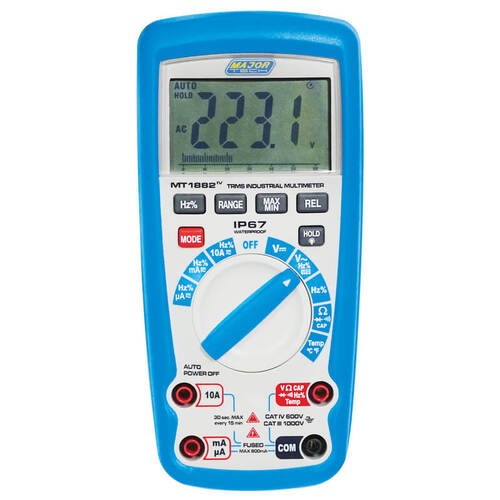

        Major Tech MT1882 | 1000V AC/DC IP67 True RMS Multimeter

        Description:

        The MT1882 is a True RMS professional multimeter especially designed for everyday use by HVAC technicians and electricians, whilst offering voltage measuring ranges up to 1000V AC and DC and with useful measuring ranges of Temperature, Resistance, AC/DC Current, Capacitance and Frequency. NCV function, automatic Non-Contact voltage detection, the LCD backlight will glow red when AC voltage above 110V is sensed. The large 6000 counts backlit LCD display with a 61 segment bar graph ensures that readings are easy to read under all circumstances. The meter has been designed that should a user turn the rotary switch in any direction whilst an input of up to 1000V AC/DC is applied to the meter, the meter will not get damaged. The meter has a double moulded rubber case with an IP67 waterproof and dustproof rating, and a rugged design for heavy-duty use.

        Features:

        • CAT IV 600V and CAT III 1000V
        • IP67 Dust & waterproof with O-ring sealed casing
        • Measures AC and DC voltage to 1000V
        • Variable Frequency Drive
        • Capacitance to 60mF
        • -20°C to 1000°C Temperature Measurement
        • Relative mode
        • The measures frequency range of 10Hz to 10MHz on electronic and electrical circuits
        • 6000 Count LCD display
        • 61 segment analogue bargraph
        • Non-contact voltage detector above 110V AC, LCD turns red
        • Blue backlight for dimly lit areas
        • Auto range with manual override
        • MIN / MAX / Data hold
        • Full ranges protection & Auto power off
        • Overmould rubber housing & Integrated test lead holder

        (MT1882)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features

        Specifications

        Function Range Resolution Accuracy
        DC Voltage 600mV – 1000V 1V ±(0.5% + 5 Digits)
        AC Voltage 6V – 1000V 1V ±(0.8% + 4 Digits)
        AC Voltage (VFD) 50V – 600V 0.1V ±(4.0% + 9 Digits)
        DC Current 600uA – 10A 0.01A ±(1.0% + 3 Digits)
        AC Current 600uA – 10A 0.01A ±(1.5% + 3 Digits)
        Resistance 600Ω – 60MΩ 0.01MΩ ±(0.8% + 2 Digits)
        Capacitance 60nF – 60mF 0.01mF ±(4.0% + 5 Digits)
        Temperature -20°C – 1000°C 1°C ±(3.0% + 5°C Digits)
        Frequency (Electronic) 9.999Hz – 10MHz 0.01MHz ±(1.0% + 5 Digits)
        Frequency (Electrical) 10 ~ 1KHz 0.0Hz ±(1.5% reading)
        Duty Cycle 0.1% – 99.9% 0.1% ±(1.2% + 2 Digits)
        AC Response True RMS
        Digital Display 6000 Count
        Bargraph 61 Segmented
        Continuity Test Audible signal if the resistance is approx. 50Ω or less
        Diode Test Test current 0.9mA typical, open circuit voltage 3.2V DC typical
        Non-Contact Voltage Detection above 110V AC, LCD display turns red
        Data Hold Yes
        Back Light Yes
        Enclosure IP67 Dust & Waterproof Double Moulded
        Battery 9V
        Dimensions 187 x 81 x 50mm
        Weight 342g
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU MT1882
        Barcode # 6008229006357
        Shipping Weight 0.5620kg
        Shipping Width 0.060m
        Shipping Height 0.180m
        Shipping Length 0.120m
        TYPE VALUE
        Type Multimeter
        Brand Major Tech
        Dimensions 187 x 81 x 50mm
        Battery 9V
        DC Voltage 600mV – 1000V
        Enclosure IP67 Dust & Waterproof Double Moulded
