Major Tech MT1885 | 1500V DC IP67 True RMS Bluetooth Multimeter
This video shows Major Tech IP67 multimeters used underwater.
Major Tech multimeters are one of the first to be designed to meet the IP67 rating.
IP67 is the Ingress Protection rating, where,
Major Tech IP67 multimeters can be used immediately, accurately and safely in highly humid conditions, and yes, you can turn the switch.
(Model shown may not be the same as the product on this page)
Additional related video.
Additional related video.
Description:

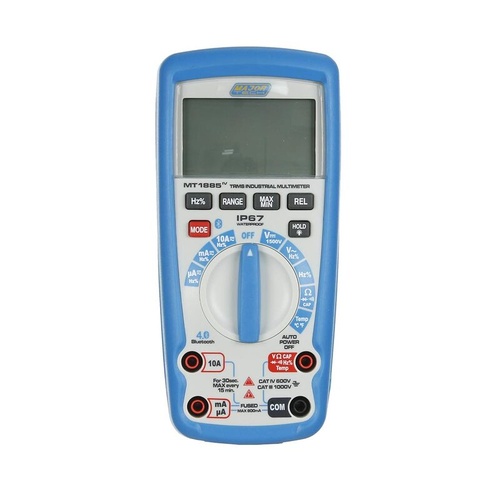

The MT1885 is a CAT IV 600V True RMS multimeter specially designed for the Solar industry due to the measurement of up to 1500V DC. The meter has a large 6000 count backlit LCD with the added advantage of a 61 segment analogue bargraph. NCV function, automatic Non-Contact voltage detection, the LCD backlight will be in red when AC voltage above 110V is sensed. Other measuring ranges include ACV to 1000V, Micro Amps and Amps, Frequency, Resistance, Duty Cycle, capacitance and temperature measurements. The Bluetooth function allows the user to transmit data to the Android or iOS mobile App for viewing, organising and sharing recordings. The meter has a double moulded rubber case with IP67 waterproof and dustproof rating, rugged design for heavy duty use.
Features:
(MT1885)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
| Function | Range | Resolution | Accuracy |
| DC Voltage | 600mV – 1500V | 1V | ±(0.5% + 5 Digits) |
| AC Voltage | 6V – 1000V | 1V | ±(0.8% + 4 Digits) |
| DC Current | 600uA – 10A | 10mA | ±(1.0% + 3 Digits) |
| AC Current | 600uA – 10A | 10mA | ±(1.5% + 3 Digits) |
| Resistance | 600Ω – 60MΩ | 10kΩ | ±(1.5% + 2 Digits) |
| Capacitance | 99.9nF – 99.99mF | 0.01mF | ±(4.0% + 5 Digits) |
| Temperature | -20°C – 1000°C | 1°C | ±(3.0% + 5°C Digits) |
| Frequency (Electronic) | 9.999Hz – 9.999MHz | 1kHz | ±(1.2% + 4 Digits) |
| Frequency (Electrical) | 10 ~ 1KHz | 0.01Hz | ±(1.5% reading) |
| Duty Cycle | 0.1% – 99.9% | 0.1% | ±(1.2% + 2 Digits) |
| AC Response | True RMS | ||
| Digital Display | 6000 Count | ||
| Bargraph | 61 Segmented | ||
| Continuity Test | Audible signal if the resistance is approx. 50Ω or less | ||
| Diode Test | Test current 0.9mA typical, open circuit voltage 3.2V DC typical | ||
| Non-Contact Voltage | Detection above 110V AC, LCD display turns red | ||
| Bluetooth | Bluetooth 4.0 Technology | ||
| Data Hold | Yes | ||
| Back Light | Yes | ||
| Enclosure | IP67 Dust & Waterproof Double Moulded | ||
| Battery | 9V | ||
| Dimensions | 187 x 81 x 50mm | ||
| Weight | 342g | ||
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Major Tech |
| SKU | MT1885 |
| Barcode # | 6008229006364 |
| Shipping Weight | 0.5200kg |
| Shipping Width | 0.060m |
| Shipping Height | 0.190m |
| Shipping Length | 0.120m |
| Shipping Cubic | 0.001368000m3 |
| TYPE | VALUE |
|---|---|
| Type | Compact Multimeter |
| Brand | Major Tech |
| Dimensions | 187 x 81 x 50mm |
| Bluetooth | Yes |
