        This video shows Major Tech IP67 multimeters used underwater.
        Major Tech multimeters are one of the first to be designed to meet the IP67 rating.
        IP67 is the Ingress Protection rating, where,

        • 6 means it's fully protected against dust and other particles and
        • 7 means the device can be fully immersed for up to 30 minutes up to 1 meter deep.

        Major Tech IP67 multimeters can be used immediately, accurately and safely in highly humid conditions, and yes, you can turn the switch.

        (Model shown may not be the same as the product on this page)

        Additional related video.

        Description

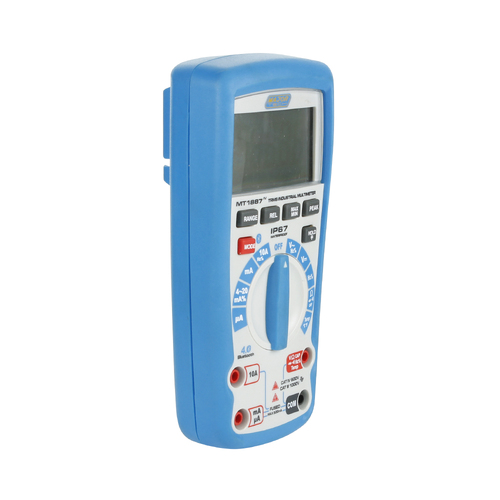

        Major Tech MT1887 | 1500V DC IP67 True RMS Bluetooth Multimeter

        Description:

        The MT1887 is a True RMS professional multimeter having improved measurement functions, troubleshooting feature, resolution and accuracy to solve problems on power distribution, motor drives, electromechanical equipment and plant automation with the 4-20mA% loop measurements. The meter has a large 40 000 count backlit LCD with the added advantage of a 41 segment analogue bargraph. NCV function, automatic Non-Contact voltage detection, the LCD backlight will be in red when AC voltage above 110V is sensed. Specially designed for the Solar Industry the DC voltage range measures up to 1500V DC, other measuring ranges include ACV to 1000V, Micro Amps and Amps, Frequency, Resistance, Duty Cycle, capacitance and temperature measurements. The Bluetooth function allows the user to transmit data to the Android or iOS mobile App for viewing, organising and sharing recordings. The meter has a double moulded rubber case with IP67 waterproof and dustproof rating, rugged design for heavy duty use.

        Features:

        • CAT IV 600V and CAT III 1000V
        • IP67 Dust & waterproof with O-ring sealed casing
        • 40 000 count LCD display with 41 Segment Bargraph
        • Measures DC voltage up to 1500V
        • Measures AC voltage up to 1000V
        • Temperature measurement from -50⁰C to 1000⁰C
        • AC & DC Micro Amps up to 10A
        • 4-20mA process loop measurements with % reading
        • Capacitance to 40mF
        • Frequency to 100MHz
        • Duty Cycle
        • Relative mode
        • Automatic non-contact voltage detector above 110V AC, LCD turns red
        • Min, Max and Data Hold
        • Auto Power Off

        (MT1887)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features

        Specifications

        Function Range Resolution Accuracy
        DC Voltage 400mV – 1500V 1V ±(0.1% + 6 Digits)
        AC Voltage 4V – 1000V 0.1V ±(1.0% + 8 Digits)
        DC Current 400uA – 10A 0.001A ±(1.0% + 3 Digits)
        AC Current 400uA – 10A 0.01A ±(1.5% + 8 Digits)
        Resistance 400Ω – 40MΩ 0.01MΩ ±(0.5% + 8 Digits)
        Capacitance 40nF – 40mF 0.01mF ±(2.5% + 10 Digits)
        Temperature -50°C – 1000°C 1°C ±(1.0% + 2.5°C Digits)
        4-20mA% 25 to 15% 0.01% ±50 digits
        Frequency (Electronic) 40Hz – 100MHz 0.01MHz ±(0.1% + 1 Digits)
        Frequency (Electrical) 40 ~ 400Hz 0.01Hz ±(0.5% reading)
        Duty Cycle 5% – 95% 0.01% ±(1.2% + 2 Digits)
        AC Response True RMS
        Digital Display 40 000 Count
        Bargraph 41 Segmented
        Continuity Test Audible signal if the resistance is approx. 50Ω or less
        Diode Test Test current 0.9mA typical, open circuit voltage 3.2V DC typical
        Peak >1ms
        Non-Contact Voltage Detection above 110V AC, LCD display turns red
        Bluetooth Bluetooth 4.0 Technology
        Data Hold Yes
        Back Light Yes
        Enclosure IP67 Dust & Waterproof Double Moulded
        Battery 9V
        Dimensions 187 x 81 x 50mm
        Weight 342g
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU MT1887
        Barcode # 6008229006371
        Package Weight 0.351kg
        TYPE VALUE
        Type Mulitmeter
        Brand Major Tech
        Dimensions 187 x 81 x 50mm
        Battery 9V
        Enclosure IP67
