        Learn more by watching our Major Tech MT250 | AC Voltage & Current Data Logger | Solar Installation Meter video.

        Additional related video.

        Description

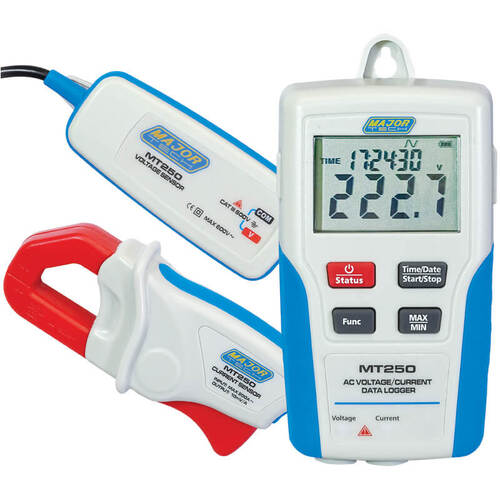

        Major Tech MT250 | AC Voltage & Current Data Logger | Solar Installation Meter

        Description:

        Solar Installation Meter
        The MT250 is designed for ease of use in recording AC Voltage and Current.
        The Logger can be programmed simply via a USB interface from your PC.
        1-second rapid sampling rate variable to 24 hours.
        LCD display of Voltage or Current for quick reference checks.

        Features

        • Magnetic back plate for easy attachment to metal surfaces
        • Each channel can record up to 50022 data
        • Date and Time Stamp
        • Graphical and Printed Text information
        • Battery or AC power supply
        Accessories
        • Carrying case
        • AAA Batteries
        • Test leads
        • Instruction manual
        • USB cable

        (MT250)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features

        Specifications

        Function Range Resolution Accuracy
        Voltage (RMS) 6 – 600.0V 0.1V ±(2% ±1V)
        Current (RMS) 2 – 200A 0.1A 100mA ±(2.0% ± 0.9%) f.s. +accuracy of sensor
        Trigger 100mA ±(3.5% ± 2.2%) f.s. + accuracy of sensor
        Capture PQA 100mA ±(3.0% ± 1.7%) f.s. + accuracy of sensor
        Crest Factor 2.5 or less: RMS (sine) +2% +1%f.s. 95% or less of each range
        Allowable Input 50/60Hz, 10% or more of the range Ch1
        Display Range 0-105% of each range
        Frequency Range 40 – 1KHz
        Wiring Connections 2 Channel
        Measurements and Parameters Voltage, Current
        Sampling Speed 1second to 24Hour
        Internal Memory 100,044 points current or voltage, 50,022 points channel current and voltage
        PC Communication USB
        Display Range 0-105% of each range
        Display Update Period Real time
        Enclosure Over Moulded casing
        Power Source AC External DC9V (special AC Adapter)
        Power Source DC 4 x R6P
        Weight 248g
        Dimensions 114 x 63 x 34mm
        Safety Specs IEC 61010-1 Cat III 300V
        Included Accessories USB Cable, Voltage lead, Current Clamp, Manual, 4 x R6P Batteries
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU MT250
        Barcode # 6008229008139
        Package Weight 0.900kg
        Package Width 0.210m
        Package Height 0.155m
        Package Length 0.090m
        TYPE VALUE
        Type Multimeter
        Brand Major Tech
        Colour Blue & White
        Includes AAA Batteries
        Includes Carrying case
        Includes Test leads
        Includes Instruction manual
        Includes USB Cable
