        Learn more by watching our Major Tech MT472 | 690V AC/DC Voltage Tester video.

        Description

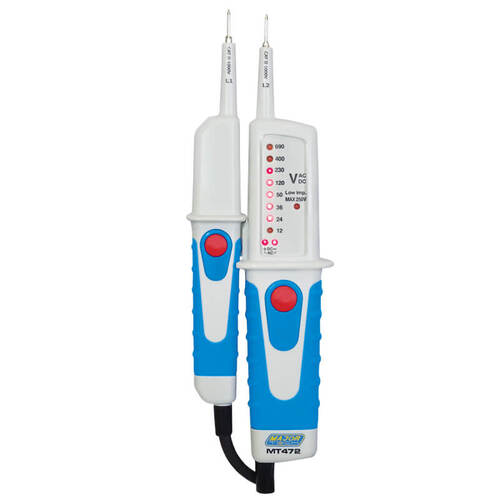

        Major Tech MT472 | 690V AC/DC Voltage Tester

        Description:

        The MT472 is IP64 and is a basic voltage tester designed to meet electrician’s requirements for the measurement of AC and DC voltage and continuity. The tester displays the voltage on red LED’s which increment as the voltage increases. There is an LED indication for polarity when DCV is measured. No switching of the meter on as the tester automatically turns on when voltage is applied to the two test probes. The MT472 incorporates a Low Impedance Test, which induces a basic load of approximately 6kΩ at 690 volts, and continuity measurements up to 200kΩ. The MT472 meets the CAT IV 600V and CAT III 1000V safety standards.

        Features:

        • CAT IV 600V and CAT III 1000V
        • IP64 waterproof housing
        • AC & DC Voltage detection from 12V to 690V AC and DC
        • LED Indication
        • Low Impedance test
        • Built-in Flashlight
        • Polarity Detection
        • Voltage function operates without battery
        • Continuity test to 200kΩ

        (MT472)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features

        Specifications

        Function Range Accuracy
        DC Voltage 12 – 690V ±(30%)
        AC Voltage 12 – 690V ±(30%)
        RCD Test 10mA and 30mA
        Continuity Yes
        AC Bandwidth 50Hz – 60Hz
        Digital Display LED Indication
        Polarity Indication Yes
        Low Input Impedance ≤6kΩ
        Flashlight Yes
        Enclosure Double injection IP64
        Weight 237g
        Dimensions 240 x 78 x 40mm
        Safety Specs IEC61010-1 CAT IV 600V
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU MT472
        Barcode # 6008229006319
        TYPE VALUE
        Type Voltage Tester
        Brand Major Tech
        Height (mm) 40
        Width (mm) 78
        Length (mm) 240
        Housing IP64 Waterproof
        Safety Specs IEC61010-1 CAT IV 600V
