        Learn more by watching our Major Tech MT473 | 1000V AC/DC Voltage Tester video.

        Description

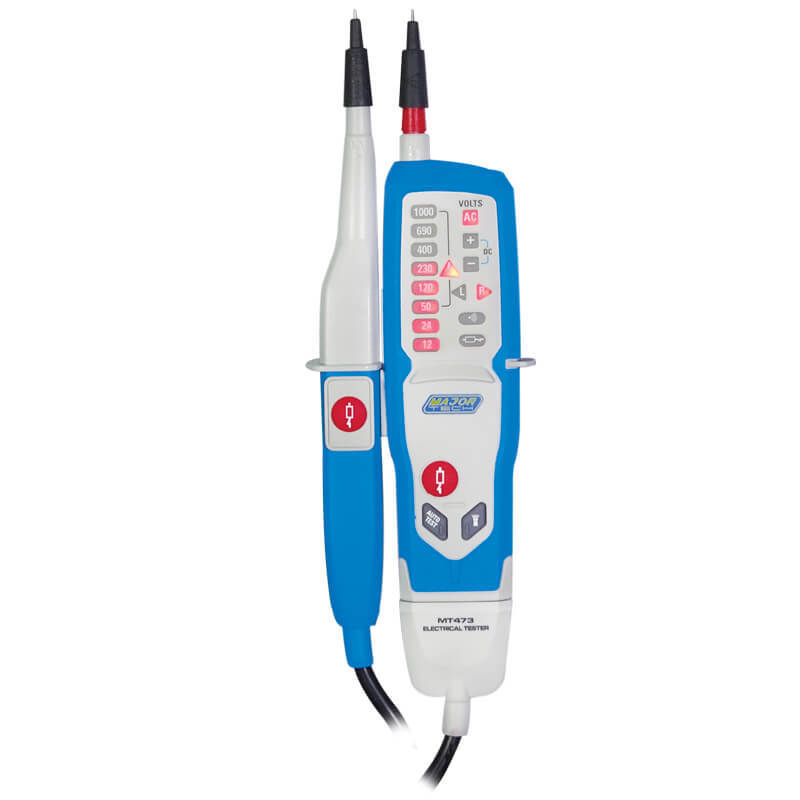

        Major Tech MT473 | 1000V AC/DC Voltage Tester

        Description:

        The MT473 is a 2-Pole voltage, continuity and phase tester with rapid LED indication of voltage levels. The voltage range is from 12V to 1000V AC/DC on LED indication. When AC/DC Voltage is detected the meter has three ways to indicate the voltage, by LED visual display, sound and vibration when the load buttons are pressed. The vibration operates similar to traditional solenoid type voltage testers and meets IEC1010-1 CAT IV 600V safety requirements. The MT473 has a rotary field detection for testing 3-Phase systems as well as a single pole Phase Test. Other features include a built-in flashlight, Continuity Buzzer. Diode Test. High Quality heavy duty molded IP64 case, a thicker cord with wear indicator and well fitted and durable probe protector.

        Features:

        • CAT IV 600V and CAT III 1000V
        • IP64 waterproof housing
        • LED Indication to 12V to 1000V AC/DC
        • Fixed impedance -200kΩ (≤ 3,5mA@1000V)
        • Switchable load by 2 pushbuttons (30mA@230V)
        • Vibration during load
        • Rotary field direction
        • Flashlight
        • 4mm probe tip thickness

        (MT473)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features

        Specifications

        Function Range Accuracy
        DC Voltage 12 – 690V ±(30%)
        AC Voltage 12 – 690V ±(30%)
        RCD Test 10mA and 30mA
        Continuity Yes
        AC Bandwidth 50Hz – 60Hz
        Digital Display LED Indication
        Polarity Indication Yes
        Low Input Impedance ≤6kΩ
        Flashlight Yes
        Enclosure Double injection IP64
        Weight 237g
        Dimensions 240 x 78 x 40mm
        Safety Specs IEC61010-1 CAT IV 600V
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU MT473
        Barcode # 6008229031083
        TYPE VALUE
        Type Voltage Tester
        Brand Major Tech
        Height (mm) 30
        Width (mm) 78
        Length (mm) 240
        Power Source 2 x AAA
        Safety Specs IEC61010-1 CAT IV 600V
