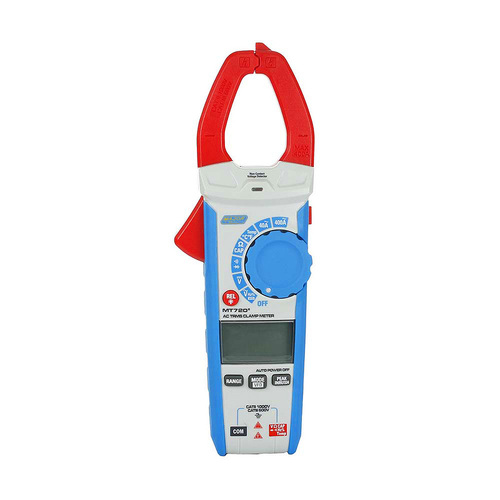

Major Tech MT720 | 400A AC True RMS Clamp Meter
Learn more by watching our Major Tech MT720 | 400A AC True RMS Clamp Meter video.
Additional related video.
Description:
The MT720 is a CAT III 600V, 4000 count True RMS 400A AC digital clamp meter with indication on a large backlit LCD display, providing fast sampling time with high accuracy. The meter measures 1000V AC/DC, temperature, frequency , capacitance and resistance measurements, plus 100ms Inrush current and Peak Voltage value. The VFD function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives. Added features include Relative mode for Capacitance Zero and DCV, ACV and ACA offset adjustment, Non-Contact voltage detection, Data hold function and a built-in flashlight for dimly lit areas. Housed in a modern double moulded rubber housing.
Features:
(MT720)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
| Function | Range | Resolution | Accuracy |
| AC Current | 40.00A – 400.0A | 10mA | ±(2.5% + 8 Digits) |
| DC Voltage | 4.000V – 1000V | 1mV | ±(1.0% + 3 Digits) |
| AC Voltage | 4.000V – 1000V | 1mV | ±(1.2% + 5 Digits) |
| Resistance | 400.0Ω – 40.00MΩ | 0.1Ω | ±(1.5% + 2 Digits) |
| Frequency | 10Hz – 100kHz | 1HZ | ±(1.0% + 5 Digits) |
| Capacitance | 99.99nF – 99.99mF | 0.01nF | ±(3.0% + 5 Digits) |
| Temperature | -20 to 1000°C | 0.1°C | ±(3.0°C + 3 Digits) |
| Duty Cycle | 20.0% to 80.0% | 0,001 | ±(1.2% + 10 Digits) |
| True RMS Measurements | ACV, ACA | ||
| AC Bandwidth | 2KHz | ||
| Digital Display | 4000 | ||
| Non-Contact Voltage (NCV) | Yes | ||
| Overrange Indication | Yes | ||
| Continuity | Yes | ||
| Diode Test | Yes | ||
| Jaw Size | 30mm | ||
| Input Impedance | >10MΩ DCV & >10MΩ VAC | ||
| Min Max | Yes | ||
| Peak Hold | Yes | ||
| Data Hold | Yes | ||
| Back Light | Yes | ||
| Enclosure | Double injection moulding | ||
| Low Battery Indication | Yes | ||
| Batteries | 3 x AAA | ||
| Weight | 305g | ||
| Dimensions | 220 x 80 x 39mm | ||
| Safety Specs | IEC61010-1 CAT III 600V | ||
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Major Tech |
| SKU | MT720 |
| Barcode # | 6008229008009 |
| Shipping Weight | 0.5270kg |
| Shipping Width | 0.060m |
| Shipping Height | 0.240m |
| Shipping Length | 0.120m |
| Shipping Cubic | 0.000686000m3 |
| TYPE | VALUE |
|---|---|
| Type | AC Clamp Meter |
| Brand | Major Tech |
| Height (mm) | 39 |
| Width (mm) | 80 |
| Length (mm) | 220 |
