        Description

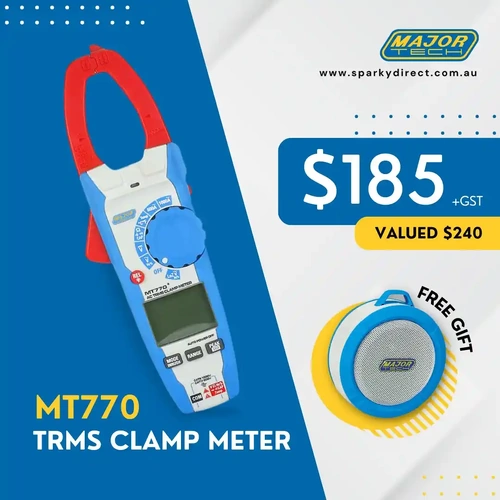

        Major Tech MT770 | 1000A AC True RMS Clamp Meter

        Description:

        The MT770 is a CAT IV 600V, 6000 count True RMS 1000A AC digital clamp meter with indication on a large backlit LCD display, providing fast sampling time with high accuracy. The meter measures 1000V AC/DC, temperature, frequency, capacitance and resistance measurements, plus 100ms Inrush current and Peak Voltage value. The VFD function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives, while the Low Z range function has a low pass filter to eliminate errors caused by “Ghost” voltages. Added features include Relative mode for Capacitance Zero and DCV, ACV and ACA offset adjustment, Non-Contact voltage detection, Data hold function and a built-in flashlight for dimly lit areas. Housed in a modern double moulded rubber housing.

        Features:

        • CAT IV 600V and CAT III 1000V
        • 6000 count backlit LCD display
        • Ø33mm Cable Clamp size
        • Measurement of DC voltage and AC voltage up to 1000V
        • Capacitance to 100mF
        • Temperature measurement from -20⁰C to 1000⁰C
        • INRUSH Current Measurements
        • VFD – Variable Frequency Drive voltage value
        • LoZ – Low impedance mode prevents false readings due to “Ghost” voltage
        • NCV – Non-Contact Voltage Detector
        • Built-In Flashlight
        • Continuity buzzer and Diode Test
        • Peak Mode and Data Hold function
        • Auto Power Off

        (MT770)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features

        Specifications

        Function Range Resolution Accuracy
        AC Current 600.00A – 1000.0A 10mA ±(2.5% + 8 Digits)
        DC Voltage 600.0mV – 1000V 1mV ±(1.5% + 2 Digits)
        AC Voltage 6.000V – 1000V 1mV ±(1.5% + 5 Digits)
        Resistance 600.0Ω – 60.00MΩ 0.1Ω ±(1.5% + 2 Digits)
        Frequency 9.999Hz – 99.99kHz 0.01Hz ±(1.2% + 5 Digits)
        Capacitance 60.00nF – 100.0mF 0.01nF ±(3.0% + 5 Digits)
        Temperature -20 to 1000°C 0.1°C ±(5.0% + 3°C Digits)
        Duty Cycle 10.0% to 90.0% 0.001 ±(1.2% + 2 Digits)
        True RMS Measurements ACV, ACA
        AC Bandwidth 50 – 400Hz
        Digital Display 6000
        Non-Contact Voltage (NCV) Yes
        Overrange Indication Yes
        Continuity Yes
        Diode Test Yes
        Jaw Size 33mm
        Input Impedance >10MΩ DCV & >10MΩ VAC
        Low Frequency Input Yes
        Min Max Yes
        Peak Hold Yes
        Data Hold Yes
        Back Light Yes
        Enclosure Double injection moulding
        Low Battery Indication Yes
        Batteries 3 x AAA
        Weight 350g
        Dimensions 250 x 70 x 40mm
        Safety Specs IEC61010-1 CAT IV 600V
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU MT770
        Barcode # 6008229009327
        Shipping Weight 0.6310kg
        Shipping Width 0.060m
        Shipping Height 0.280m
        Shipping Length 0.120m
        Shipping Cubic 0.000668000m3
        TYPE VALUE
        Type AC Clamp Meter
        Brand Major Tech
        Height (mm) 44
        Width (mm) 66
        Length (mm) 230
