        Learn more by watching our Major Tech MTK25 | 7 Piece Contractors Test Kit video.

        Description

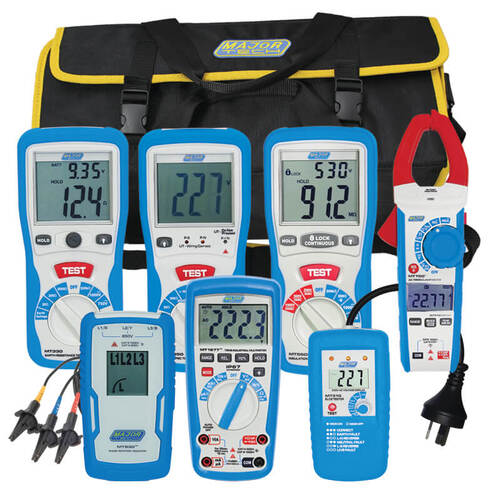

        Major Tech MTK25 | 7 Piece Contractors Test Kit

        Kit Includes :

        • MT330 – Earth Resistance Tester
        • MT350 – Loop Impedance and PSC Tester
        • MT550 – 1000V Digital Insulation Tester
        • MT720 – 400A AC Clamp Meter
        • MT310 – ELCB Tester
        • MT930 – Phase Rotation Meter
        • MT1877 – 1000V IP67 True RMS Multimeter
        • MTKBAG – Heavy Duty Meter Case

        Description:

        The MTK25 is a contractors kit that includes an earth resistance tester, loop impedance and PSC tester, digital insulation tester, phase rotation meter, clamp meter, ELCB tester and a multimeter in a heavy-duty meter case.

        • MT330 – Earth Resistance Tester
          • CAT IV 600V and CAT III 1000V
          • Earth Resistance 2000Ω
          • Earth voltage to 200V
          • Indicates if resistance of auxiliary spikes is within tolerance
          • Direct readout of the earth resistance on the LCD display
          • 750V AC & 1000V DC
          • Overrange indicator
          • Zero adjustment of leads
          • Data Hold
          • Overmould casing
          • Dual LCD with backlight
          • Ideal for earth rods and lightning conductors
          • Accessories: Carrying Case | Adjustable Shoulder Strap | Test Leads | 3 Wire Cable | Aux Earth Spikes | 6 x AA Batteries | Instruction Manual
        • MT350 – Loop Impedance and PSC Tester
          • CAT IV 600V and CAT III 1000V
          • Custom microprocessor controlled for highest accuracy and reliability
          • Loop impedance of 2000Ω range measurement is carried out with low test current (15mA)
          • Automatic Lock-Out if Test Resistor Overheats
          • Direct readout of Prospective Short Circuit Current and Earth Fault Current
          • Measures low loop impedance of 0.01Ω
          • 3 LED’s for checking correct wiring status
          • Safe voltage measurement function
          • Visual indication of reversed phase and neutral at wiring socket
          • Accessories: Carrying Case | Distribution Board Test Leads | Magnetic Strip | Croc Clips | Plug Cord with IEC Connectors | 6 x AA Batteries | Instruction Manual
        • MT550 – 1000V Digital Insulation Tester
          • CAT IV 600V and CAT III 1000V
          • Three test ranges 250V-500V-1000V
          • 750V AC voltage and 1000V DC voltage ranges
          • Live Circuit warning and buzzer
          • Data Hold function
          • 1mA output current on insulation test
          • 200mA short circuit on continuity range
          • Continuity Buzzer
          • Automatic discharge after test
          • Lock down Test Button for continuous use
          • Accessories: Test Leads | Black Crock Lead | Magnetic Strip | Carrying Case | Adjustable shoulder strap | 6 x AA Batteries | Instruction Manual
        • MT720 – 400A AC Clamp Meter
          • CAT III 600V and CAT II 1000V
          • 4000 count backlit LCD display
          • Ø30mm Cable Clamp size
          • Measurement of DC voltage and AC voltage up to 1000V
          • Capacitance to 100mF
          • Temperature measurement from -20⁰C to 1000⁰C
          • INRUSH Current Measurements
          • VFD – Variable Frequency Drive voltage value
          • NCV – Non-Contact Voltage Detector
          • Continuity buzzer and Diode Test
          • Peak Mode and Data Hold function
          • Accessories: Test Leads | Type-K Wire Probe | Type-K Adaptor | Carrying Case | 3 x AAA Batteries | Instruction Manual
        • MT310 – ELCB Tester
          • CAT IV 300V and CAT III 600V
          • Compact, lightweight and easy to use
          • Correct Wiring Indication with neon lights
          • Operates on 230V systems
          • AC Voltage measurement on LCD display
          • Fixed current settings from 10mA to 35mA
          • Separate test button
          • Double injection rubber housing
          • Accessories: Instruction Manual
        • MT930 – Phase Rotation Meter
          • CAT IV 300V and CAT III 600V
          • Large LCD Display
          • Phase rotation indication
          • 3-Phase Indication
          • Checks phase sequence and open phase simultaneously
          • Double injection rubber housing
          • Can check a wide range of 3-phase power sources from 40V to 690V AC
          • Large size crocodile clips
          • Accessories: Set of large-sized croc clips| Instruction manual
        • MT1877 – 1000V IP67 True RMS Multimeter
          • CAT IV 600V and CAT III 1000V
          • IP67 Dust & Waterproof double moulded housing
          • Measures AC and DC Voltage to 1000V
          • Measures Resistance up to 40MΩ
          • Measures Frequency range on Electronic and Electrical Circuits
          • Capacitance to 100µF
          • Non-contact voltage detector above 110V AC, the LCD turns red
          • Duty Cycle
          • 4000 Count LCD
          • Full Ranges Protection
          • Accessories: 9V Battery | Test Leads | Instruction Manual
        • MTKBAG – Heavy Duty Meter Case
          • Carrying case to house a range of meters the user needs to carry at any one time
          • Specially designed by Major Tech to be compact with a shoulder strap
          • Adjustable compartments for bigger instruments or tools
          • Pocket for instruction manuals or documentation
          • Size – 220mm (H) x 450mm (W) x 200mm (D)

        (MTK25)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features




        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU MTK25
        Barcode # 6008229032684
        TYPE VALUE
        Type Contractors Test Kit
        Brand Major Tech
        Meter Case Dimensions 220mm (H) x 450mm (W) x 200mm (D)
        Kit includes Clamp Meter
        Kit includes ELCB Tester
        Kit includes Heavy Duty Meter Case
        Kit includes Earth Resistance Tester
        Kit includes Loop Impedance & PSC Tester
        Kit includes Digital Insulation Tester
        Kit includes Phase Rotation Meter
