        Learn more by watching our Matchmaster 10MM-MD34P | Power Passing Masthead Amplifier VHF/UHF 34dB with 4G/5G Filter and Power Supply video.

        Description

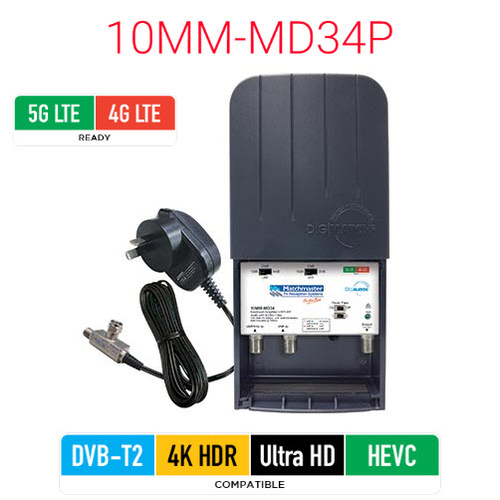

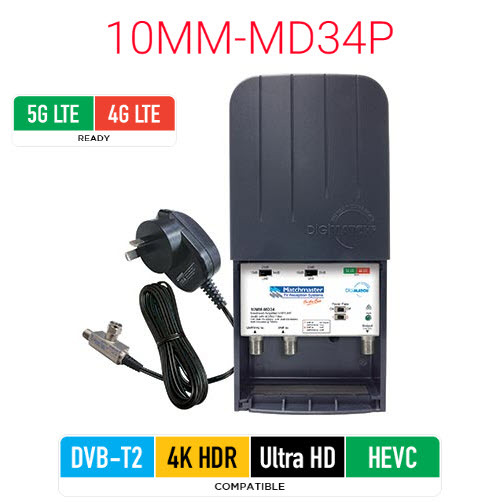

        Matchmaster 10MM-MD34P | Power Passing Masthead Amplifier VHF/UHF 34dB with 4G/5G Filter and Power Supply

        The MD34 is a 4G/5G filtered wide band VHF/UHF amplifier suitable for use in all capital cities and regions with broadcast up to 694MHz. Featuring Power passing via VHF or UHF to line power additional amplifiers upstream. Featuring filtering from 694MHz to deliver greater than 50dB filtering at 750MHz for 4G and 5G LTE signals.

        Features and Benefits

        • Built in 4G LTE 694MHz low pass filter Filtering at 750MHz is >40dB at maximum gain for UHF of 34dB and >50dB at maximum gain for VHF of 28dB
        • Power through switch to drive extra amplifiers for both VHF and UHF with gain adjustment switch selectable between 15, 25 and 34dB for UHF and 10, 20 and 28dB for VHF
        • Heavy duty UV stable outdoor weather proof casing
        • Can be used with VHF or UHF antenna’s or a combination of both
        • Includes 14V DC power supply and cable ties for mounting
        • VHF input return loss is >12dB with a noise figure of <4.8dB and UHF input return loss is >11dB with a noise figure of <2.9dB

        (10MM-MD34P)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Matchmaster
        SKU 10MM-MD34P
        Barcode # 9322190023500
        Shipping Weight 0.4130kg
        Shipping Width 0.200m
        Shipping Height 0.060m
        Shipping Length 0.120m
        Shipping Cubic 0.001440000m3
        TYPE VALUE
        Type TV Data Phone
        Brand Matchmaster
        DC cable length 1.8m
        Antenna Port ‘F’ Male
        TV Port ‘F’ Female
        Power adaptor 190-240V AC/50-60Hz
        Noise Figure <=5dB
        Impedance 75 Ohm
        Return loss >12dB typical
        Reviews
        5.0

        3 Reviews
        5 STARS
        3
        4 STARS
        0
        3 STARS
        0
        2 STARS
        0
        1 STAR
        0

        Write a review

        Gary Smith

        Quality product on 19 December 2020

        Very easy product to install and well made, seems to be working well so far.

        Constantine

        Red Lining!!! on 24 August 2020

        Wow..wired this beauty up and red lining! 100% Signal strength and quality, even after an downstream split! Recommended...For sure!

        Baz Mohebbati

        Great masthead amplifier on 26 July 2020

        Product works perfect, best signal we’ve had in years.
