        Learn more by watching our Matelec FKW-15120-NMI | 3 Phase 100Amp KW Hour Meter | NMI Approved video.

        Description

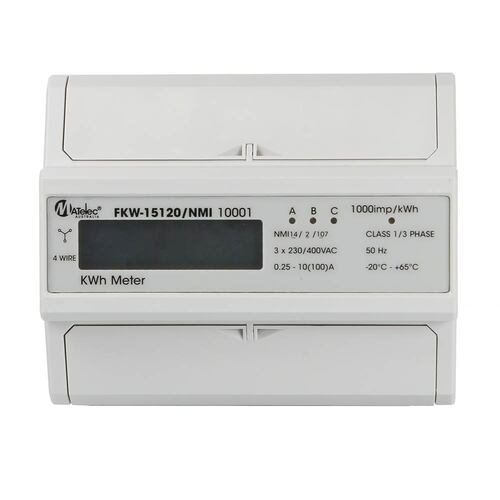

        Matelec FKW-15120-NMI | 3 Phase 100Amp KW Hour Meter | NMI Approved

        What is a kilowatt hour watt?
        kWh meters are compact electronic monitoring devices that measure the consumed energy flowing through a circuit such as a standard 240Vac line and act as a kWh calculator.

        Product Features

        • Accuracy Class: 1
        • LCD Display
        • 3 Phase
        • Maximum Rated Current: 100A
        • Nominal Voltage: 230/400Vac (3~)
        • Operational Current Range: 0.25A - 100A
        • Over Current Withstand: 1000A for 0.01s
        • Operational Frequency Range: 50-60Hz
        • Internal Power Consumption: <2W / 10VA per phase
        • Test Output Flash Rate: 1000 impulses per kWh
        • Power Supply Indicator: Mains power ON
        • Consumption Indicator: Flashing on load
        • Maximum Cable Capacity: 25mm² (Neutral 4mm²)
        • Operating Temperature: -20º C - +55º C
        • Operating Humidity: < 95%
        • International Standard: IEC62052-11, IEC62053-21
        • Warranty: 1 year
        • Backup Battery: 3.6V Lithium
        • Housing Material: Fire Resistant ABS
        • Weatherproof Rating: IP51
        • Tamper Proof: Kit available
        • DIMENSIONS
        • 100mm (H) x 122mm (W) x 65mm (D) 7 Module

        (FKW-15120-NMI)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Matelec
        SKU FKW-15120-NMI
        Barcode # 9338999004923
        Package Weight 0.451kg
        Package Width 0.140m
        Package Height 0.075m
        Package Length 0.115m
        TYPE VALUE
        Type Kilowatt Hour Meter
        Brand Matelec
        Rated Current (A) 100
        Height (mm) 100
        Width (mm) 123
        Depth (mm) 65
        Protection IP51
        Mounting Din Rail
        Battery Backup Yes
        Single or 3 Phase 3 Phase
        Analog or Digital Digital
