        Learn more by watching our Matelec FMS-12075 | Matelec 360 Degree Flush Mount Mini Sensor Black & White Trims video.

        Description

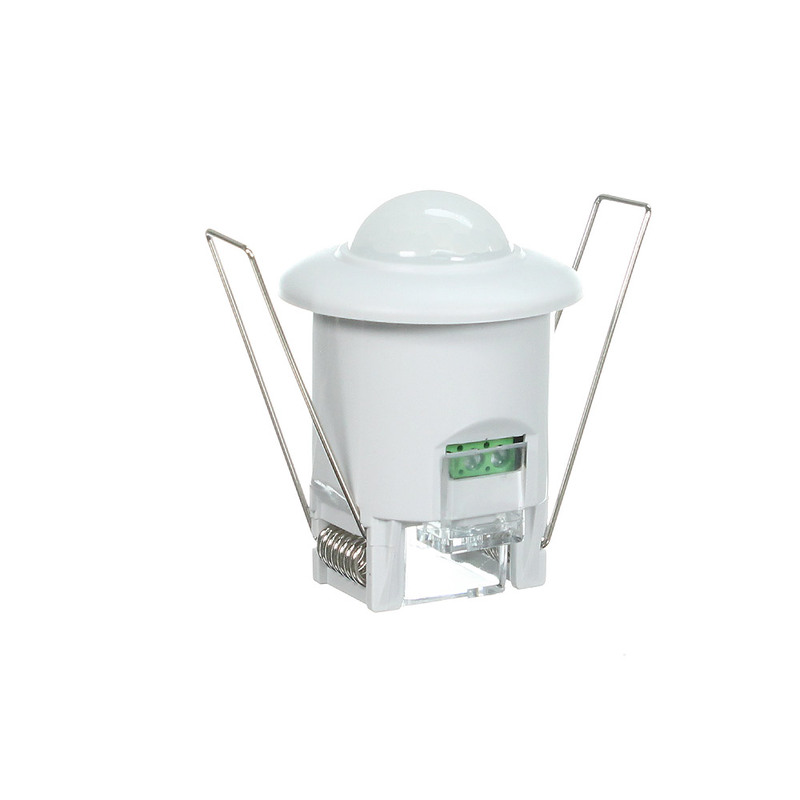

        Matelec FMS-12075 | Matelec 360 Degree Flush Mount Mini Sensor Black & White Trims

        The FMS-12075 Motion sensor is a ceiling-mounted sensor and utilises infrared technology to detect and identify motion, night and day. Both a white and a black cover are included.

        Upon detection, the connected lighting load will illuminate for a user-determined period of time.

        • Extremely compact slimline design
        • Enlarged cable entry for easy wiring
        • Fixings supplied
        • 3-year warranty

        Specifications

        • Mounting: Flush/recess ceiling
        • Weatherproof rating: IP20, interior
        • Detection angle: 360°
        • Detection range: Up to 6 metres
        • Switching capacity: 300W (LED), 400W (fluorescent), 800W (incandescent)
        • Min LED load: 1W
        • Manual override: Yes
        • Adjustments: Time & lux
        • Time delay: 10 sec - 15 mins
        • Lux adjustment: Dawn to dusk (2-2000lux)
        • Voltage: 220 - 240 Vac 50Hz
        • Colour: White & black (both cover plates included)
        • Dimensions: 50mm Ø x 67mm (H)
        • Cut-out hole: 42mm Ø
        • Certification: CE, RoHS, SAA

        Installation:
        All electrical connections relating to this installation must be carried out by a suitably qualified and registered electrician.

        (FMS-12075)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 3 Year
        Commercial Use: 3 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Matelec
        SKU FMS-12075
        Barcode # 9338999003780
        Shipping Weight 0.0880kg
        Shipping Width 0.060m
        Shipping Height 0.080m
        Shipping Length 0.100m
        Shipping Cubic 0.000480000m3
        TYPE VALUE
        Type Sensor
        Colour White/Black
        Voltage (V) 220-240V AC
        Wattage (W) 1200
        Sensor Max Detection Distance (meters) 6
        Sensor Detection Angle (Degrees) 360°
        Frequency 50Hz
        IP Rating IP20
        Cut-Out (mm) 42
        Mounting Type Flush/recess ceiling
        Minimum Load 1W
