        Matelec FMS-15000-B | Adjustable 3 Wire Infrared Motion Sensor IP66 Black
        $43.95 $39.95 ex. GST
        Video

        Learn more by watching our Matelec FMS-15000-B | Adjustable 3 Wire Infrared Motion Sensor IP66 Black video.

        Description

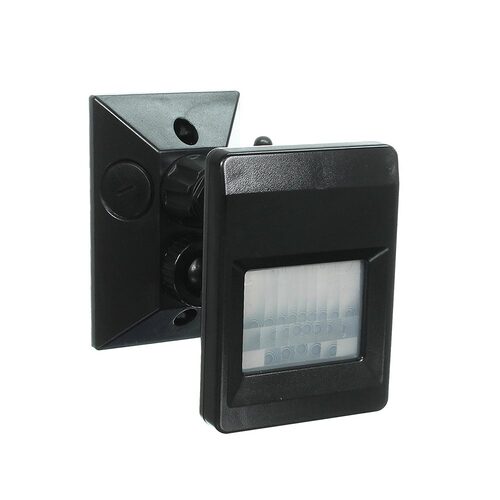

        Matelec FMS-15000-B | Adjustable 3 Wire Infrared Motion Sensor IP66 Black

        This attractive and functional detector helps to achieve these goals by switching our lighting off automatically when it is not required and switching it on when it is needed. Passive Infrared technology combined with Photocell control ensures that the minimum amount of energy is used. Often used outdoors, but also with indoor applications, these detectors are used to control lighting in domestic, commercial, retail and service areas.

        Areas of application often include: Gardens, Decking areas, Patios Paths & walkways, Passages, Driveways, Parking areas, loading bays, Stairways, Sheds & Garages

        Features

        • Surface Mounted / 3 wire
        • Input Voltage: 220-240V 50/60Hz
        • Rated Load: 1000w (LED), 1000W (Flourescent), 2000w (Incandescent)
        • IP66 Rated
        • Warranty: 3 Year replacement
        • TIME dial for adjusting Time delay: 10sec-30mins
        • Min LED Load 1W
        • SENS dial for adjusting Detection Distance: 120 Degrees Max 18m
        • The detection range will be shorter at cooler temperatures
        • Installation height: 1.8m to 2.5m
        • To override sensor function, switch OFF-ON, OFF-ON at wall within 3 seconds.
        • To return to sensor function, turn OFF and back on ON after 3 seconds.
        • Mounting screw centres 84mm

        (FMS-15000-B)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 3 Year
        Commercial Use: 3 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Matelec
        SKU FMS-15000-B
        Barcode # 9338999005074
        Shipping Weight 0.3270kg
        Shipping Width 0.080m
        Shipping Height 0.160m
        Shipping Length 0.160m
        Shipping Cubic 0.002048000m3
        TYPE VALUE
        Type Sensor
        Colour Black
        Protection IP66
        Voltage (V) 240V
        Installation Area Indoor & Outdoor
        Sensor Max Detection Distance (meters) 18
        Sensor Detection Angle (Degrees) 120
        Time Delay 10 secs - 30mins
        Max Output Load 2000W incandescent lamp,1000W fluorescent, 1000W LED
        Light Level Adjustment 3-2000 Lux
