        Learn more by watching our Matelec NCG-M16/B | 16mm Nylon Cable Gland | Black video.

        Description

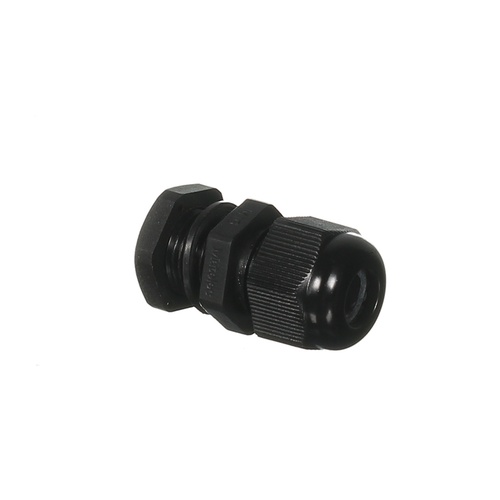

        Matelec NCG-M16/B | 16mm Nylon Cable Gland | Black

        Cable glands are used in the electrical industry to protect cables as they pass through metal or plastic enclosures, walls, cabinets and switchboards. Once installed correctly the gland tightens around the cable making a tight seal to protect against moisture entering the penetration.

        Nylon Cable glands are designed to be installed in the following manner - mount the gland through a pre drilled hole, the lock nut will then tighten on the thread making a tight fit on the enclosure or panel. Insert the desired cable through the gland and tighten the gland up around the cable - the seal inside the cover will make a tight snug fit around the cable and protect it and hold it in position.

        Product Features

        • Large cable range 4-9 mm OD
        • Rated to IP68 to prevent dust and water
        • Suitable for indoor or outdoor
        • Made from Nylon PA66 Black
        • UV Resistant
        • Complete with TPE rubber gasket
        • Vibration resistant
        • Operating Temperature Range of -40°C to 100°C
        • Flammability UL94V-2
        • 1.5 Metric Threads
        • CE and RoHS compliant
        • Low smoke - halogen free
        • Thread 15mm to go through penetration
        • 5mm Lock ring
        • Width 22mm
        • Length 42mm

        (NCG-M16-B)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Matelec
        SKU NCG-M16-B
        Barcode # 9338999000253
        Shipping Weight 0.0100kg
        Shipping Width 0.025m
        Shipping Height 0.025m
        Shipping Length 0.045m
        Shipping Cubic 0.000028000m3
        TYPE VALUE
        Type Cable Gland
        Brand Matelec
        Colour Black
        Length (mm) 42
        Protection IP68
        Box increments (This item is sold individually) 50
        Cable size mm (OD) 4-9
