        Learn more by watching our Mercator Ikuu SSWD01G | Smart Single Dimmer Light Switch | Zigbee video.

        Additional related video.

        Description

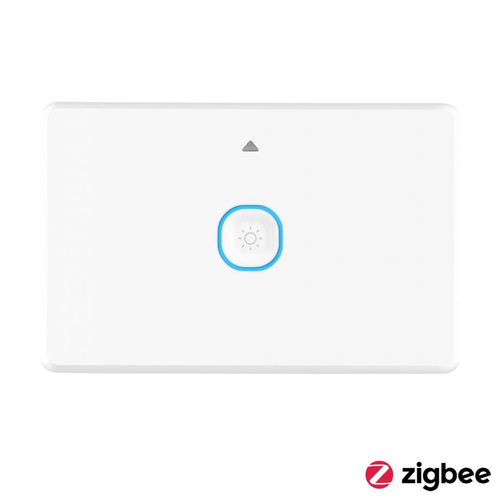

        Mercator Ikuu SSWD01G | Smart Single Dimmer Light Switch | Zigbee

        The Mercator Ikuü SSWD01G Dimmer switch range provides the ultimate experience with flexibility in how you use your products, either via the touch switch, app, or voice control

        • Integrated trailing edge dimmer with touch switch
        • Works with most leading brand dimmable LED lights
        • Requires an Electrician
        • Zigbee - Requires a hub
        • Zigbee 3.0 compliant featuring mesh technology for a greater range
        • Low latency for quicker response times
        • Backlit switch
        • Works without neutral
        • White, UV-resistant material - (Does not turn yellow)
        • Can be installed with a standard mounting bracket and a mounting block with a minimum depth of 41mm (dependent on conduit/cable entry)
        • On/off & dimming control via Mercator Ikuü app
        • Customizable timers & schedules via the Mercator Ikuü app
        • Use the scenes and automation section of the Mercator Ikuü app to control multiple products at once or even have them function automatically
        • Group multiple products together for simultaneous control
        • Works with both Amazon Alexa and Google Assistant
        • 3-year in-home warranty
        • Approved to AS/NZ standards

        (SSWD01G)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 3 Year
        Commercial Use: 3 Year
        Warranty Method: This product is valid for 3 years warranty from the date of purchase. Mercator requires a copy of "certificate of compliance' from the installing electrician to complete the claim.

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Mercator
        SKU SSWD01G
        Barcode # 9312699202223
        Shipping Weight 0.1600kg
        Shipping Width 0.076m
        Shipping Height 0.046m
        Shipping Length 0.147m
        Shipping Cubic 0.000513912m3
        View Datasheet
        View Brochure
        View Manual
        TYPE VALUE
        Type Smart Automation
        Brand Mercator Ikuu
        Range Mercator Ikuu
        Colour White
        Height (mm) 74
        Depth (mm) 31
        Length (mm) 115
        Complete / Skin Only / Grid Plate Only Complete
        Dimming Method Trailing edge
        Neutral Required No
        App Requirements Mobile device running iOS or Android. (Refer to ikuu.com.au for minimum specs)
        Wireless Frequency 2.4GHz
        Protocol IEEE 802.15.4
        Operating Load LED: 5W – 250W Incandescent: 10W - 200W
        Product Type Dimmer Switch
        System Requirements Mercator Ikuü zigbee hub
        Output Power 0-100% (limits set via app or physical dials)
        Terminal Sizes (mm²) 6mm (3 x 2.5mm)
        Technology Zigbee
        Mounting Centre Distance (mm) 84
        Warranty 3 Yr (in Home)
        IP Rating IP20 rated (Indoor only)
        Material Polycarbonate
