        Learn more by watching our NLS 30041 | 5 Hole Active Link Red Housing video.

        Description

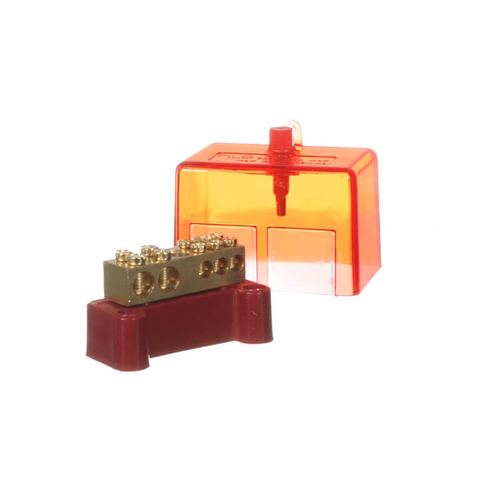

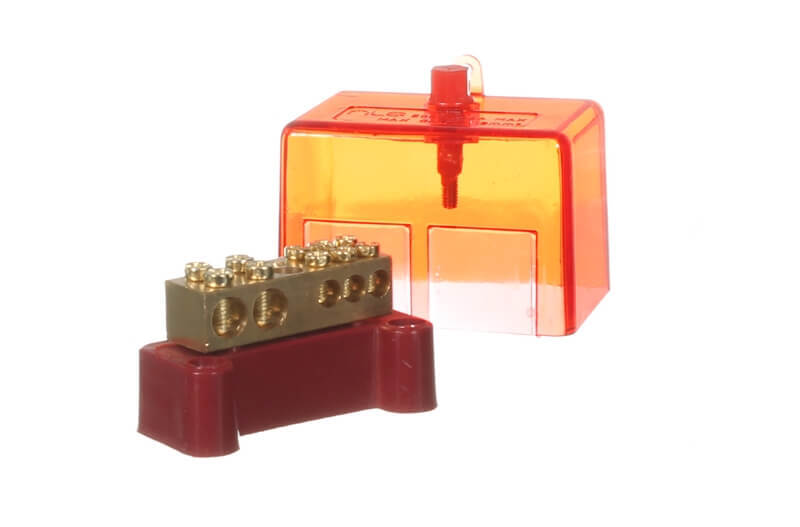

        NLS 30041 | 5 Hole Active Link Red Housing

        The 5 hole active link is a termination bar that allows multiple cables to be terminated into a meter board or enclosure. Normally the active link is located in a switchboard and corresponding cables are conveniently terminated by an electrician. A active link saves space and is very cost effective. Active links are numbered so that the corresponding cables can be easily identified.

        Features

        • 500V
        • 100A
        • 5 Hole Link
          • 3 Terminals: 5.5mm – Accommodates up to 16mm2 cables
          • 2 Terminals: 8.0mm – Accommodates up to 25mm2 cables
        • Length 66mm
        • Width 45mm
        • Depth 33mm

        (30041)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand NATIONAL LIGHT SOURCES
        SKU 30041
        Barcode # 9336700001995
        Shipping Weight 0.0840kg
        Shipping Width 0.044m
        Shipping Height 0.052m
        Shipping Length 0.064m
        Shipping Cubic 0.000146000m3
        TYPE VALUE
        Type Active / Neutral Links
        Colour Red
        Width (mm) 45
        Depth (mm) 33
        Length (mm) 66
        Box increments (This item is sold individually) 10
        Number of Terminals 5
