    Video

    Learn more by watching our NLS 30312 | 32mm PVC Cable Gland Black video.

    Description

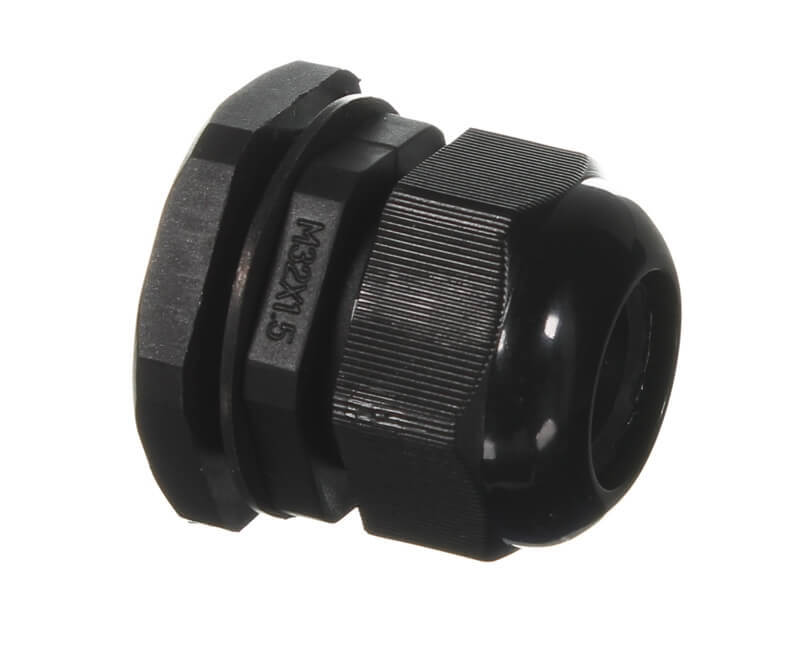

    NLS 30312 | 32mm PVC Cable Gland Black

    Cable glands are used in the electrical industry to protect cables as they pass through metal or plastic enclosures, walls, cabinets and switchboards. Once installed correctly the gland tightens around the cable making a tight seal to protect against moisture entering the penetration.

    Nylon Cable glands are designed to be installed in the following manner - mount the gland through a pre drilled hole, the lock nut will then tighten on the thread making a tight fit on the enclosure or panel. Insert the desired cable through the gland and tighten the gland up around the cable - the seal inside the cover will make a tight snug fit around the cable and protect it and hold it in position.

    Product Features

    • Large cable range 13-18mm OD
    • Rated to IP68 to prevent dust and water
    • Suitable for indoor or outdoor
    • Made from Nylon PA66 Black
    • UV Resistant
    • Complete with rubber gasket
    • Thread 11mm to go through penetration
    • 5 mm Lock ring
    • Width 44mm
    • Length 40mm

    (30312)

    Warranty

    Warranty starts from Invoice Date

    Domestic Use: 1 Year
    Commercial Use: 1 Year
    Warranty Method: Return to Sparky Direct

    Specifications

    These specifications and characteristics outline physical, mechanical, electrical details.

    Brand NATIONAL LIGHT SOURCES
    SKU 30312
    Package Weight 0.025kg
    Package Width 0.040m
    Package Height 0.040m
    Package Length 0.045m
    TYPE VALUE
    Type Cable Gland
    Brand National Light Sources
    Colour Black
    Length (mm) 40
    Protection IP68
    Hole Width (mm) 32
    Box increments (This item is sold individually) 50
    Cable size mm (OD) 13-18
