        Description

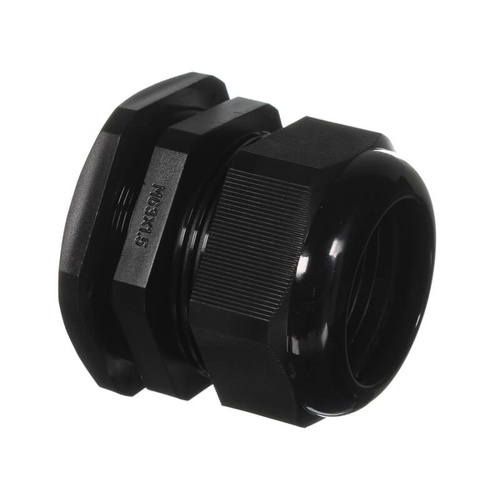

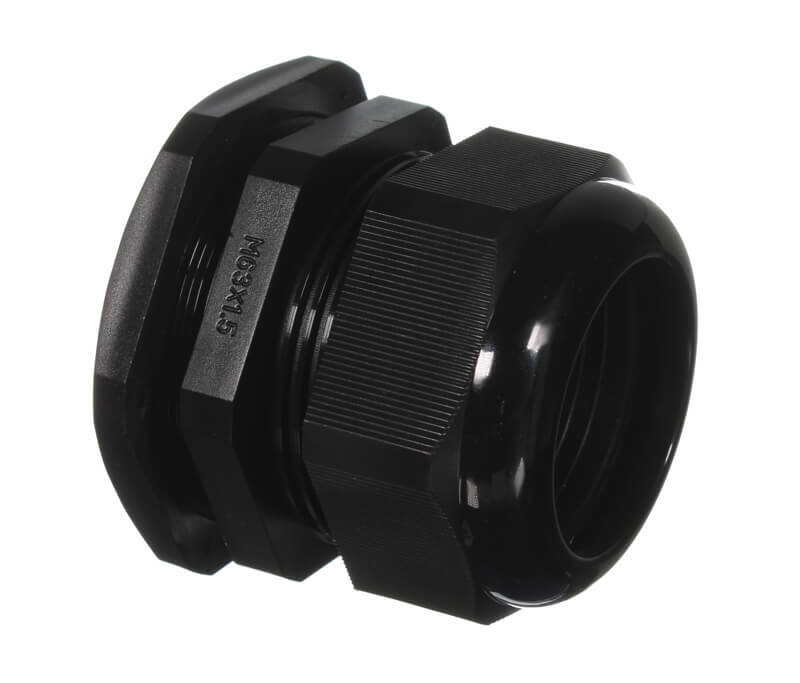

        NLS 30321 | 63mm PVC Cable Gland Black

        Cable glands are used in the electrical industry to protect cables as they pass through metal or plastic enclosures, walls, cabinets and switchboards. Once installed correctly the gland tightens around the cable making a tight seal to protect against moisture entering the penetration.

        Nylon Cable glands are designed to be installed in the following manner - mount the gland through a pre drilled hole, the lock nut will then tighten on the thread making a tight fit on the enclosure or panel. Insert the desired cable through the gland and tighten the gland up around the cable - the seal inside the cover will make a tight snug fit around the cable and protect it and hold it in position.

        Product Features

        • Large cable range 37-43mm OD
        • Rated to IP68 to prevent dust and water
        • Suitable for indoor or outdoor
        • Made from Nylon PA66 Black
        • UV Resistant
        • Complete with rubber gasket
        • Thread 13mm to go through penetration
        • 6.5 mm Lock ring
        • Width 82mm
        • Length 65mm

        (30321)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand NATIONAL LIGHT SOURCES
        SKU 30321
        Shipping Weight 0.1010kg
        Shipping Width 0.075m
        Shipping Height 0.075m
        Shipping Length 0.065m
        Shipping Cubic 0.000366000m3
        TYPE VALUE
        Type Cable Gland
        Brand National Light Sources
        Colour Black
        Length (mm) 65
        Protection IP68
        Hole Width (mm) 63
        Box increments (This item is sold individually) 2
        Cable size mm (OD) 37-43
