        Learn more by watching our NLS 30567 | Three Pole 35Amp Isolating Switch | IP66 Weather Protected video.

        Description

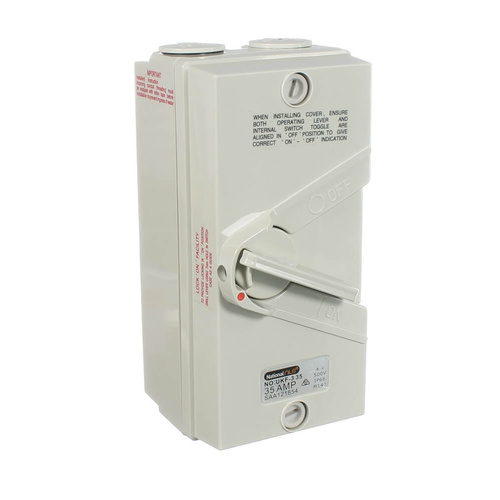

        NLS 30567 | Three Pole 35Amp Isolating Switch | IP66 Weather Protected

        Suitable for Air Conditioners and many other isolating purposes. These outdoor isolator switches are robust and can stand the harsh Australian sun.
        Electricians and Air conditioner installers find these isolators easy to install and find the neutral link and earth link located inside very handy. The terminals are large and will easily clamp down on 6mm - 8mm cable if required.

        Features:

        • Amperage: 35amp
        • 3 Phase
        • The isolator switch complies with IEC/EN60947-3 and AS/NZS60947-3 standard.
        • Facility for padlocking in both on and off position provided, thereby enabling conformity to the electricity at work regulations.
        • The enclosure is made of high impact polycarbonate plastic material combining good insulation properties with strength, durability and style.
        • 2 x 25mm screwed entries on top of mounting block
        • 2 x 25mm screwed entries on bottom of mounting block
        • Silica gel basket seal is used between lid and base to provide environmental protection.
        • Supplied with two 25 to 20mm reducers for optional installation to 20mm conduit.
        • IP66 Rating prevents water and dust ingress.
        • Width: 84mm
        • Height: 84mm
        • Length: 174mm

        (30567)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand NATIONAL LIGHT SOURCES
        SKU 30567
        Barcode # 9336700011895
        Package Weight 0.496kg
        Package Width 0.090m
        Package Height 0.085m
        Package Length 0.180m
        TYPE VALUE
        Brand National Light Sources
        Range WeatherX
        Colour Resistant Grey
        Rated Current (A) 35
        Height (mm) 84
        Width (mm) 84
        Length (mm) 174
        Complete / Skin Only / Grid Plate Only Complete
        Number of Switches / Gangs 1
        Standards IEC/EN60947-3 and AS/NZS60947-3
        Protection IP66
        Number of Poles 3
        Reviews
        4.0

        1 Reviews
        5 STARS
        0
        4 STARS
        1
        3 STARS
        0
        2 STARS
        0
        1 STAR
        0

        Write a review

        Noel Buckley

        NLS 30567 # pole 35amp isolating switch IP66 on 24 April 2021

        Great product used in this instance as an isolator for a 20amp/phase, 3 phase pottery kiln. Ideal for purpose, easily installed great $value
