        Learn more by watching our NLS 66CV510RCD | 5 Pin 10Amp Switched Socket Outlet Earth leakage Protected IP66 | 30718 video.

        Description

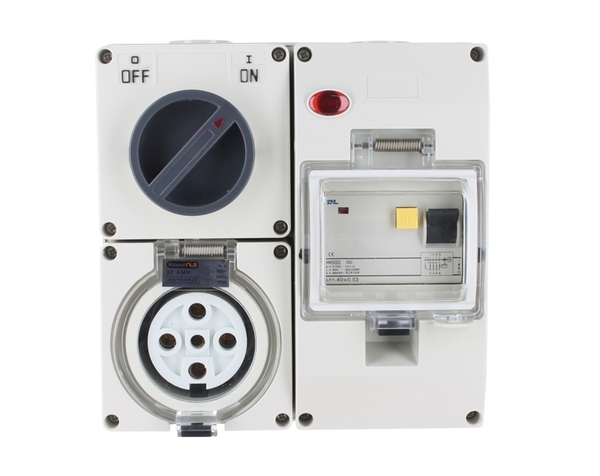

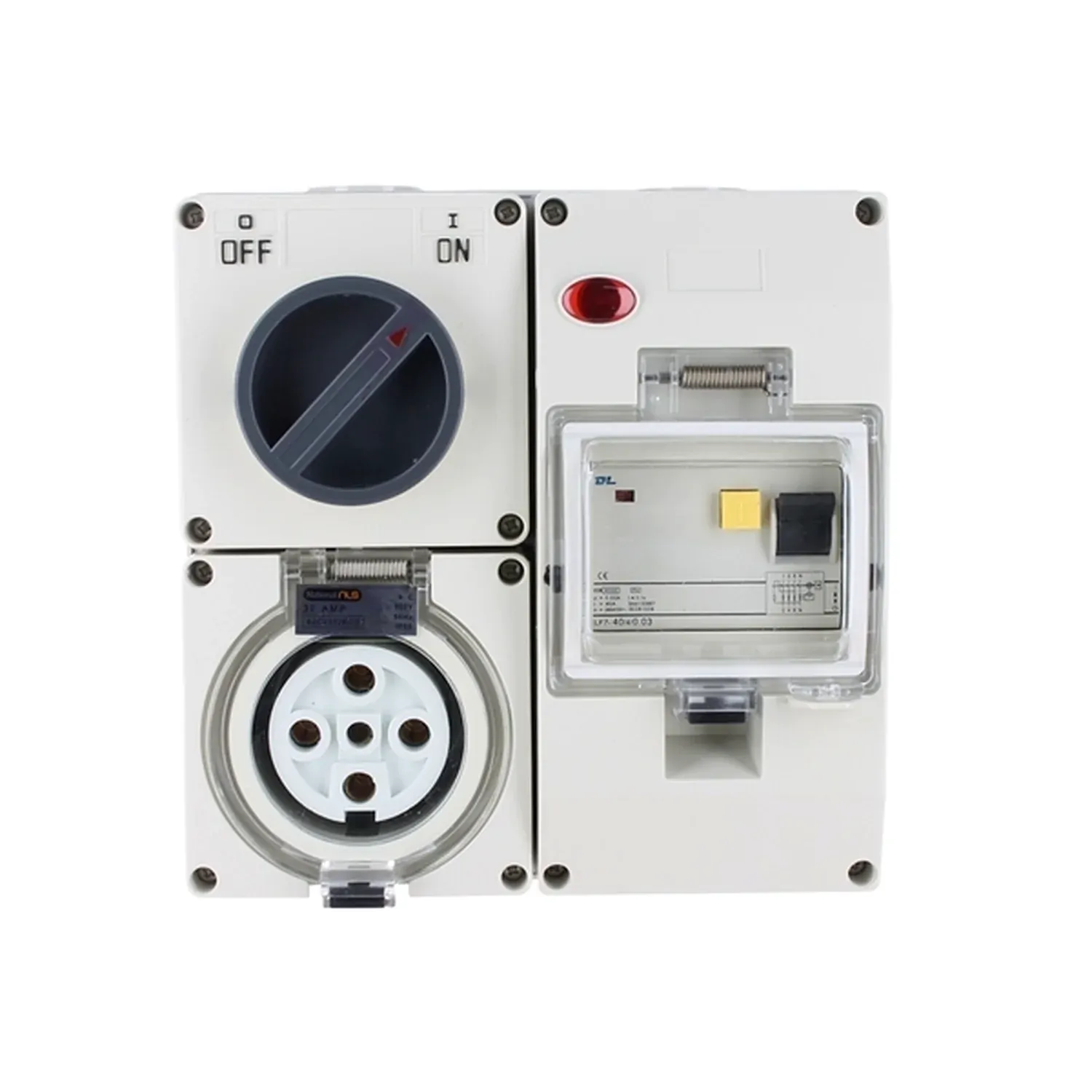

        NLS 66CV510RCD | 5 Pin 10Amp Switched Socket Outlet Earth leakage Protected IP66 | 30718

        The NLS 66CV510RCD 5 pin 10 amp RCD protected industrial outlet has been developed to meet the domestic and commercial demand of the Australian market at an affordable price. Protecting appliances, power tools and people this earth leakage-protected switched outlet has got you covered. Manufactured to comply with AS/NZS3123 you can be guaranteed piece of mind with every installation. Compatible with accessories from most leading brands never be caught out again with supply chain shortages. Whether in a shed, in full weather, or simply for extra durability in a protected outlet, the 5 Pin 10 amp round pin-protected switched socket outlet will get the job done without breaking the bank.

        You will be amazed by the quality and familiar appearance of these industrial products at a fraction of the cost.

        Features:

        • 5 Round Pin Industrial outlet
        • 10 Amp
        • 25 Amp 2 Pole RCD A Type
        • IP66
        • You will be amazed by the quality and familiar appearance of these industrial products.
        • NLS is 75-100% cheaper than alternatives.
        • They are interchangeable with existing products on the market.
        • Pin Configuration and Dimensions are suitable for use with already installed similar products which are currently used in the market.

        (66CV510RCD)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 5 Year
        Commercial Use: 5 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand NATIONAL LIGHT SOURCES
        SKU 66CV510RCD
        Barcode # 9336700014896
        Shipping Weight 1.8900kg
        Shipping Width 0.200m
        Shipping Height 0.110m
        Shipping Length 0.200m
        Shipping Cubic 0.004400000m3
        View Datasheet
        TYPE VALUE
        Type Industrial Outlets
        Brand National Light Sources
        Colour Grey
        Rated Current (A) 10
        Height (mm) 200
        Width (mm) 200
        Depth (mm) 110
        Protection IP66
        Voltage (V) 500
        Installation Area Indoor & Outdoor
        Pin Number 5 Round Pins
        Conduit Entries 2 x 25mm & 2 x 32mm Threaded
        Earth Leakage Protection Class Type A
        Lockable Yes
        Earth Leakage Protection 2 Pole 25 Amp 30ma
