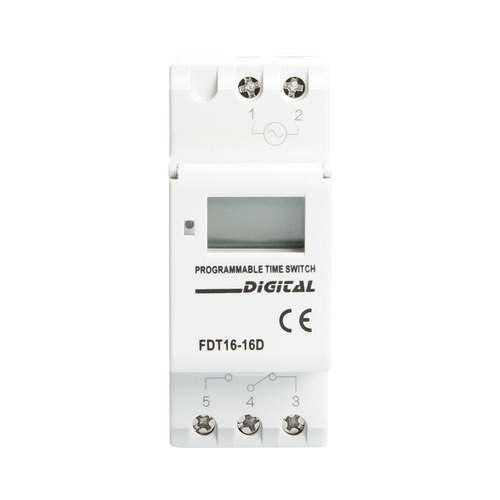

Name: NLS FDT16-16D | Single Channel Digital timer 16amp 24Hr / 7 Day Battery Backup
Brand: NATIONAL LIGHT SOURCES
SKU: FDT16-16D
Price: 32.99 AUD
Availability: InStock

Search Results:

Products
Pages

Search Results:

Product Category Suggestions

Pages

Video

Learn more by watching our NLS FDT16-16D | Single Channel Digital timer 16amp 24Hr / 7 Day Battery Backup video.

Description

NLS FDT16-16D | Single Channel Digital timer 16amp 24Hr / 7 Day Battery Backup

These compact single channel digital timer units fit on a din rail and can be used to control, pool pumps, lights, garden fittings, and many other applications. Easy to set .

Technical Data

Type: Electronic with LCD display
Rated voltage: 230V AC
Rated frequency: 50/60Hz
Contact: 1NO+1NC
Consumption: Maximum 4VA
Contact capacity:
16A/250V AC (COSφ =1)
2.5A/250V AC (COSφ =0.6)
Incandescent lamp: 1000W
Electrical endurance: 10^5 cycles (100,000 cycles)
M Time basis: Quartz
24 hours+ week program
Working precision: ≤ 2 sec/day (25° C)
Min. Programmable interval: 1minute
Power reserve: Min. 15 days
Ambient temperature: -10~40° C
Humidity: 35-85% RH
Connection terminal: Pillar terminal with clamp
Connection capacity: Rigid conductor 6mm2
Installation
on symmetrical DIN rail
Panel mounting
Mechanical endurance: 10^7 cycles (10,000,000 cycles)

Construction and Feature

Compact modular size
LCD Display
Equipped with back-up battery
Permanent switch ON/OFF

Application
The product is applicable to circuit with rated current 16A, rated voltage 250V and rated frequency 50/60Hz. It provides independent electrical control to switch on-off the circuit at programmed times and days of the week.

Please check the type of load that will be placed on the timer ie 'inductive or resistive' and use an appropriate contactor if required.
Inductive = Running a for of motor or high in rush current
Resistive = Basic lighting or heating

(FDT16-16D)

Warranty

Warranty starts from Invoice Date

Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct

Specifications

These specifications and characteristics outline physical, mechanical, electrical details.

Brand	NATIONAL LIGHT SOURCES
SKU	FDT16-16D
Barcode #	9336700011468
Shipping Weight	0.1390kg
Shipping Width	0.040m
Shipping Height	0.070m
Shipping Length	0.090m
Shipping Cubic	0.000252000m3

TYPE	VALUE
Type	Timer
Brand	National Light Sources
Rated Current (A)	16
Height (mm)	85
Width (mm)	35
Depth (mm)	65
Protection	IP20
Mounting	Din Rail
Battery Backup	360
Voltage (V)	240
Programming Type	Digital
Program Time	24h/7d

Reviews

3.0

1 Reviews

5 STARS

4 STARS

3 STARS

2 STARS

1 STAR

Write a review

Mark

Good product on 1 October 2019

Not bad but instructions are hard to translate from chinglish
