        Learn more by watching our Pulset BP18-3U | 18 Pole 3 Phase Fork Style Insulated Busbar 63A 10mm² video.

        Description

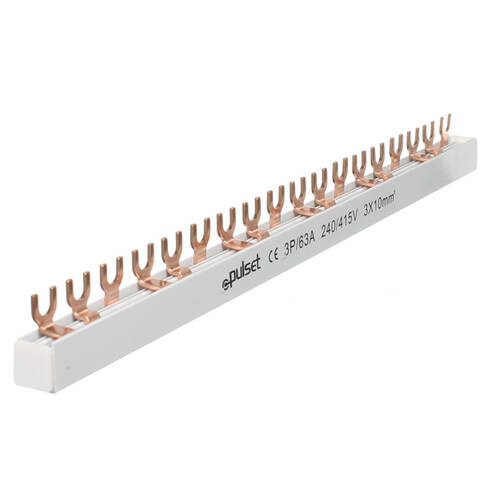

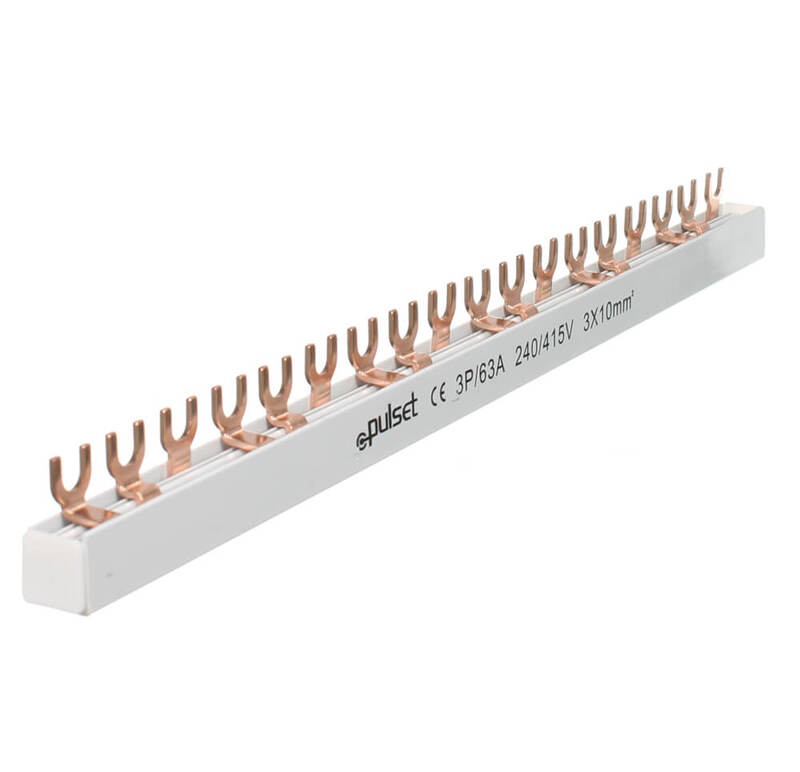

        Pulset BP18-3U | 18 Pole 3 Phase Fork Style Insulated Busbar 63A 10mm²

        The Pulset BP18-3U is a 18 pole 3 phase fork style copper busbar with plastic insulation on the body. It is designed for 3 phase connection. The fork style busbar reduces wiring effort, makes for a safer installation as it prevents hot spots and can be installed faster than looping building wire.
        No looping required for active conductors.
        The teeth on the busbar has a 12mm pitch. Quality construction and tested to perform.

        Features:

        • Number of poles: 18 P
        • 3 Phase
        • 63A
        • Max operating voltage: 240V
        • Length: 330 mm
        • Connection cross-sect. rigid cable: 10mm²
        • Connector type: busbar fork
        • Type of connection: with screw / quick connect

        (BP18-3U)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Pulset
        SKU BP18-3U
        TYPE VALUE
        Type Insulated Busbar
        Brand Pulset
        Width (mm) 330
        Number of Poles 3P
        Total Number of modules 18
