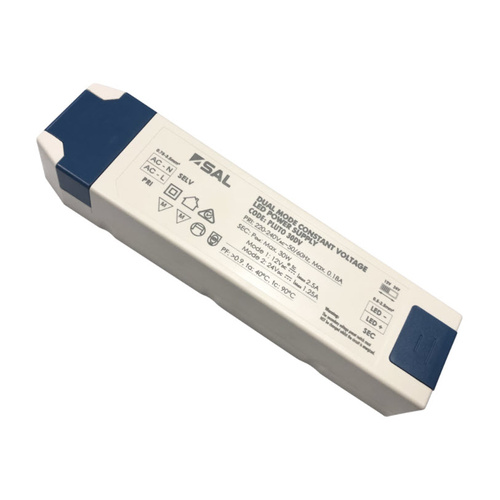

        SAL PLUTO30DV | LED Driver Constant Voltage 30w 12/24 VDC

        Versatile and compact dual voltage range with captive terminal screws, ideal for low wattage retrofit and maintenance lighting requirements.
        Australian approved dual voltage selection, constant voltage LED driver.

        The SAL Pluto LED Constant Voltage Driver is non-weatherproof with selectable output voltages of 12 or 24V DC.

        Installing low voltage garden lighting/strip lighting or simply driving low wattage devices, the PLUTO30DV tick

        • SELV and EMC compliant
        • Safe no-load operation, non-dimmable
        • Overload and short circuit protection
        • Hard wired termination design
        • 30 watt capacity with selectable 12V DC or 24V DC secondary output
        • Dimensions: (LWH) 192 x 49 x 35mm

        This product has been replaced with

        (SALPLUTO30DV)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand SAL
        SKU SALPLUTO30DV
        Barcode # 9328623119574
        Shipping Weight 0.2130kg
        Shipping Width 0.045m
        Shipping Height 0.035m
        Shipping Length 0.220m
        Shipping Cubic 0.000347000m3
        TYPE VALUE
        Type Lighting
        Brand SAL
        Height (mm) 35
        Width (mm) 49
        Length (mm) 192
        Standards SELV and EMC compliant
        Protection IP20
        Wattage (W) 30
        Dimmable No
        Driver Type Dual Volatge
        Input Voltage 240Vac
        Output Voltage 12V or 24V DC Selectable
        Power Factor 0.9
        Termination Hard Wired
        Circuit Protection Overload and Short Circuit
