        Learn more by watching our SICAME MCB3/4HAE | Mains Box Three Phase video.

        Description

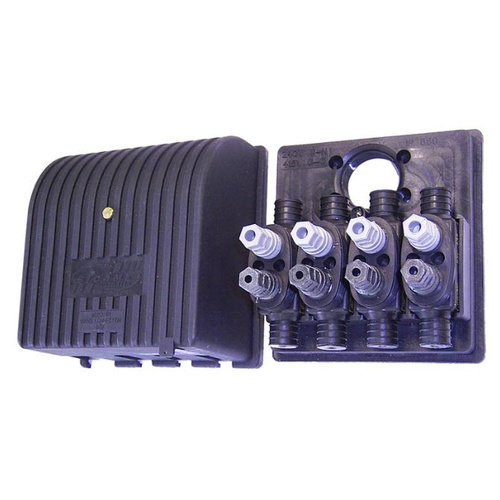

        SICAME MCB3/4HAE | Mains Box Three Phase

        SICAME Insulated Line Systems 3 Phase Mains Connection Boxes is equipped with an environmental base and cover for the protection on consumer mains.
        Each unit contains the 4 x HSC series (House Service Connector) providing a full sealed bi-metallic connection of copper consumer mains to Al or Cu services.

        Features

        • 4  x HSC435AE House Service Connectors
        • Suitable for 6-35mm² Cable
        • QLD Approved
        • 40mm Fine thread entry on rear
        • 3 Phase
        • Fully insulated and waterproof.
        • Plug in HSC’s providing bi-metal connection of service cables and consumer mains.
        • Base is suitable for rear entry of consumer mains.
        • Eliminates UV degradation of PVC consumer mains.
        • Heavy duty polymide UV stabilised construction.
        • IP66 rated.
        • Clear markings.
        • All connections made with 13mm across fl ats hexagon headed spanner.
        • Cover allows for easy exit of bonding tail HSC435/1

        (MCB3-4HAE)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Sicame
        SKU MCB3-4HAE
        Package Weight 1.100kg
        Package Width 0.160m
        Package Height 0.111m
        Package Length 0.169m
        TYPE VALUE
        Type Consumer mains
        Brand Sicame
        Colour Black
        Height (mm) 160
        Width (mm) 150
        Depth (mm) 90
        Protection IP66
        Number of Poles 3P+N
        Cable Conductor Size (mm2) 6-35
        Rear Entry Female 40mm
