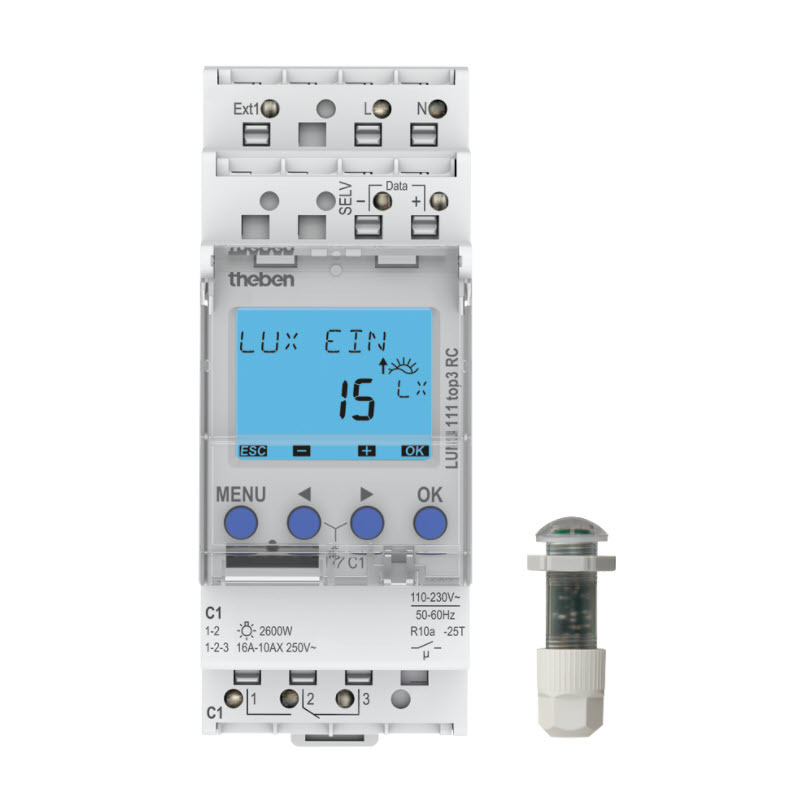

Name: THEBEN LUNA111TOP3EL | Digital Flush-mounted light sensor | External Light Sensor | Top3
Brand: Theben
SKU: LUNA111TOP3EL
Price: 175.94 AUD
Availability: InStock

THEBEN LUNA111TOP3EL | Digital Flush-mounted light sensor | External Light Sensor | Top3

Light level controller

The external light sensor included in delivery

1 channel

External input

Programming by app is possible

Safe transfer via optional Bluetooth Low Energy OBELISK top3

If you are controlling a motor or element, you must use a contactor to protect the twilight switch

Features

Maximum manipulation security, programs can only be transferred from the app to the time switch when the Bluetooth OBELISK top3 is plugged into the device

Switching brightness digitally adjustable

Adjustable On and Off switching delay

Switching brightness and switching delay can be set separately for switching On and Off

Onscreen display of channel and switching status as well as a current lux value

DuoFix spring terminals

Zero-cross switching for relay-saving switching and high lamp loads

Up to 4 sensors can be attached

Up to 10 devices can be connected to a digital sensor

Interface for OBELISK top2 memory card (PC programming)

Extended brightness range

Permanent switching ON/OFF

Test function

Switching preselection

Display backlight (can be turned off)

PIN coding

Operating hour counter

TYPE

VALUE

Type

Twilight Switch

Brand

Theben

Rated Current (A)

16(10)

Height (mm)

69.2

Width (mm)

35.8

Length (mm)

90.1

Protection

IP20

Mounting

Din Rail

Number of Modules

Voltage (V)

240

Operating voltage	110 – 230 V AC
Frequency	50 – 60 Hz
Number of channels	1
External inputs	1
Stand-by consumption	~0.8 W
Setting range brightness	1 – 99000 lx
Preset brightness value	15 lx
Switch-on delay	0 – 59 min
Switch-off delay	0 – 59 min
Type of contact	Changeover contact
Width	2 modules
Installation type	DIN rail
Type of connection	DuoFix spring terminals
Display	LCD-Display
Keyboards	4 touch buttons
Switching capacity	16 A at 250 V AC, cos φ = 1, 10 A at 250 V AC, cos φ = 0.6
Incandescent/halogen lamp load	2600 W
Halogen lamp load	2600 W
Fluorescent lamp load (conventional) not corrected	2600 VA
Fluorescent lamp load (conventional) parallel-corrected	130 µF
LED lamp < 2 W	50 W
LED lamp 2-8 W	600 W
LED lamp > 8 W	600 W
Sensor (included)	Surface-mounted light sensor
Housing and insulation material	High-temperature resistant, self-extinguishing thermoplastic
Ambient temperature	-25°C ... 55°C
Type of protection	IP 20
Protection class	II, Sensor III
Max. cable length to sensor	100 m

Brand	Theben
SKU	LUNA111TOP3EL
Barcode #	4003468110058
Shipping Weight	0.2220kg
Shipping Width	0.103m
Shipping Height	0.083m
Shipping Length	0.076m
Shipping Cubic	0.000650000m3
